The 2021 Merida One-Sixty 700 has a massive spec including 170mm Marzocchi Z1 fork, 1 x 12spd Shimano XT shifters & mech with a Race Face Aeffect chainset.
The 2021 Merida One-Sixty 700 has a massive spec including 170mm Marzocchi Z1 fork, 1 x 12spd Shimano XT shifters & mech with a Race Face Aeffect chainset.

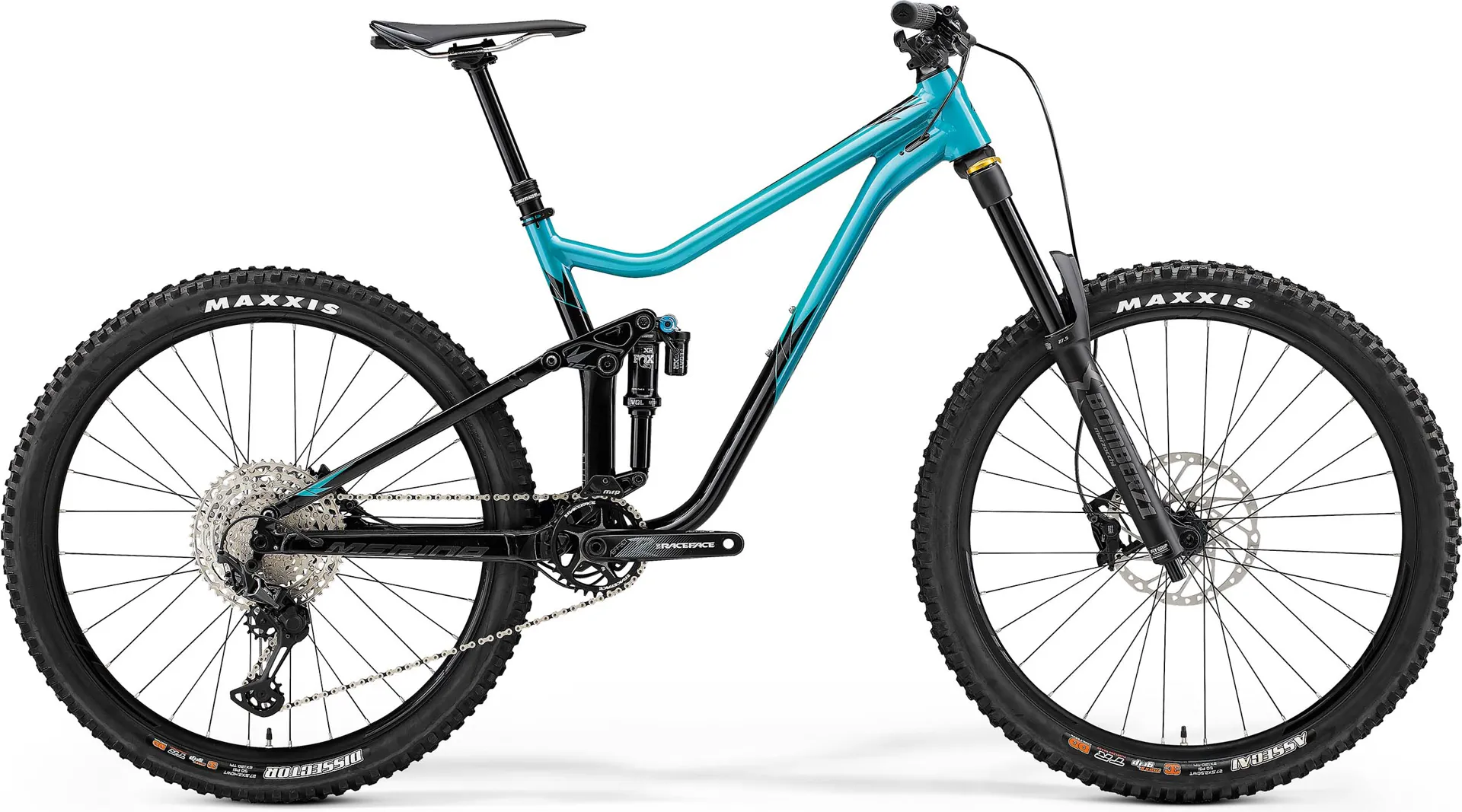

2021 Merida One-Sixty 700 Enduro Mountain Bike

Click & Collect for Free
 in Customer Rewards when you buy this item today

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!


With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on the Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

2021 Merida One-Sixty 700 Enduro Mountain Bike Information

Season : 2021

Brand : Merida

Code : 21-M035

Our multiple test-winning enduro bike featuring Float Link suspension technology and an aggressive geometry. At home on the Enduro World Series under Tony Ferreiro and on more local turf with Kyle Beattie, the frame has a long reach, slack head angle and super short chainstays for increased agility. The lower mount of the Float Link design moves with the suspension system delivering sensitive response characteristics providing almost bottomless travel for downhills but easy pedaling on the climb back up. Trunnion mounts add to the tunability as we can use a shorter shock with increased stroke. The wider mounts with ball bearing bushings increase stiffness and shock longevity.

Highlights of the One-Sixty 700 - Fox Float Performance shock with 170mm Marzocchi Z1 fork, 1 x 12 Shimano XT shifters and derailleurs with Race Face Aeffect chainset, Shimano SLX Boost standard hubs and SLX 4 pot hydraulic disc brakes.


The lower shock mount moves with the system to deliver plushness and pedalling efficiency. Our engineers can precisely influence the transmission ratio and progression, which means that a ‘Float Link’ system is very sensitive, delivering great support in mid-travel and the appearance of more travel than the model name suggests. The rear end creates the feeling of almost bottomless travel whilst remaining perfectly controlled when climbing.


Our ONE-SIXTY remains one of the biggest showstoppers in our full-suspension range. Fully at home on the demanding tracks of the Enduro World Series, ridden by Toni Ferreiro, our ONE-SIXTY has also gained press accolades. FLOW calls it ‘a genuine contender as the best trail bike we’ve ridden at this price point’ and ‘it just looked right – the right angles, the right components, at the right price.’


A trunnion mount shock gives our frame designers more flexibility by using a shorter shock with increased stroke. Combined with the ball bearing bushing of the upper mount, shock sensitivity is increased, and the suspension performance can be perfectly tuned.


Race-proven and loved by the international cycling press, our ONE-SIXTY combines super short 430 mm chainstays for increased agility and playfulness, with a long reach, slack head angles and a low centre of gravity, delivering an aggressive enduro geometry.


All models offer Boost technology at the front and rear. The shallower axle standard of 110 mm (front) and 148 mm (rear) allows for a wider spoke angle, resulting in a stiffer and stronger wheel, hugely beneficial on these bikes given the impacts they endure.
Technical Information
Frame: Lite – 6066 series triple-butted, hydroformed aluminium, carbon rocker. Tapered head tube for precise steering, Boost axle standard for stronger wheels and Smart Entry cable clamping for rattle free running.
Rear Shock: Fox Performance Float DPX2; platform
Fork: Marzocchi Z1; Air; 170mm travel; Tapered; 37mm fork offset
Headset: FSA NO.57/55E neck
Stem: Merida Expert TR; aluminium; 35mm diameter; 0 degree rise - Length : 40 mm all sizes
Handlebar: Merida Expert TR; aluminium; 780mm wide; 20mm rise
Grips: Merida Expert EC
Brake Type: Hydraulic disc
Brake Lever: Shimano SLX
Front Brake: Shimano SLX M7120; 4 piston hydraulic disc brake with Shimano RT64; 203mm rotor
Rear Brake: Shimano SLX M7120; 4 piston hydraulic disc brake with Shimano RT64; 180mm rotor
Front Tyre: Maxxis Assegai; 27.5" x 2.5"; Kevlar bead; folding; TR DD 3C MaxxGrip
Rear Tyre: Maxxis Dissector; 27.5" x 2.4"; Kevlar bead; folding; TR DD 3C MaxxTerra
Wheel Size: 27.5"
Rims: Merida Expert TR; 29mm inner rim width; Material: aluminium; Tubeless ready (tubeless tape and valves not included)
Spokes: Double Butted Black stainless
Front Hub: Shimano SLX; 110x15mm; 32 spokes; Centerlock
Rear Hub: Shimano SLX; 148x12mm, 32 spokes; Centerlock; including removable lever with 4/6mm Allen key
Speeds: 12
Front Derailleur: N/a
Rear Derailleur: Shimano XT M8100 Shadow+
Shift Levers: Shimano XT
Chain: KMC X12
Cassette: KMC X12
Chainset: Race Face Aeffect R; 32 teeth chainwheel with 170mm length crank with MRP 1X CS chain guide
Bottom Bracket: Race Face BB BB92– Ø24mm
Pedals: Not included
Saddle: Merida Expert CC with saddlebox containing Merida Multitool
Seat Post: Merida Expert TR; 30.9mm diameter; in-line; S: 125mm drop - M 150mm drop - L/XL 170mm drop with Shimano SL -MT500-IL lever
Motor: N/a
Battery Capacity: N/a
eBike Display: N/a
Sizing Information
4'11" - 5'5"5'4" - 5'10"5'9" - 6'3"6'2" - 6'8"
