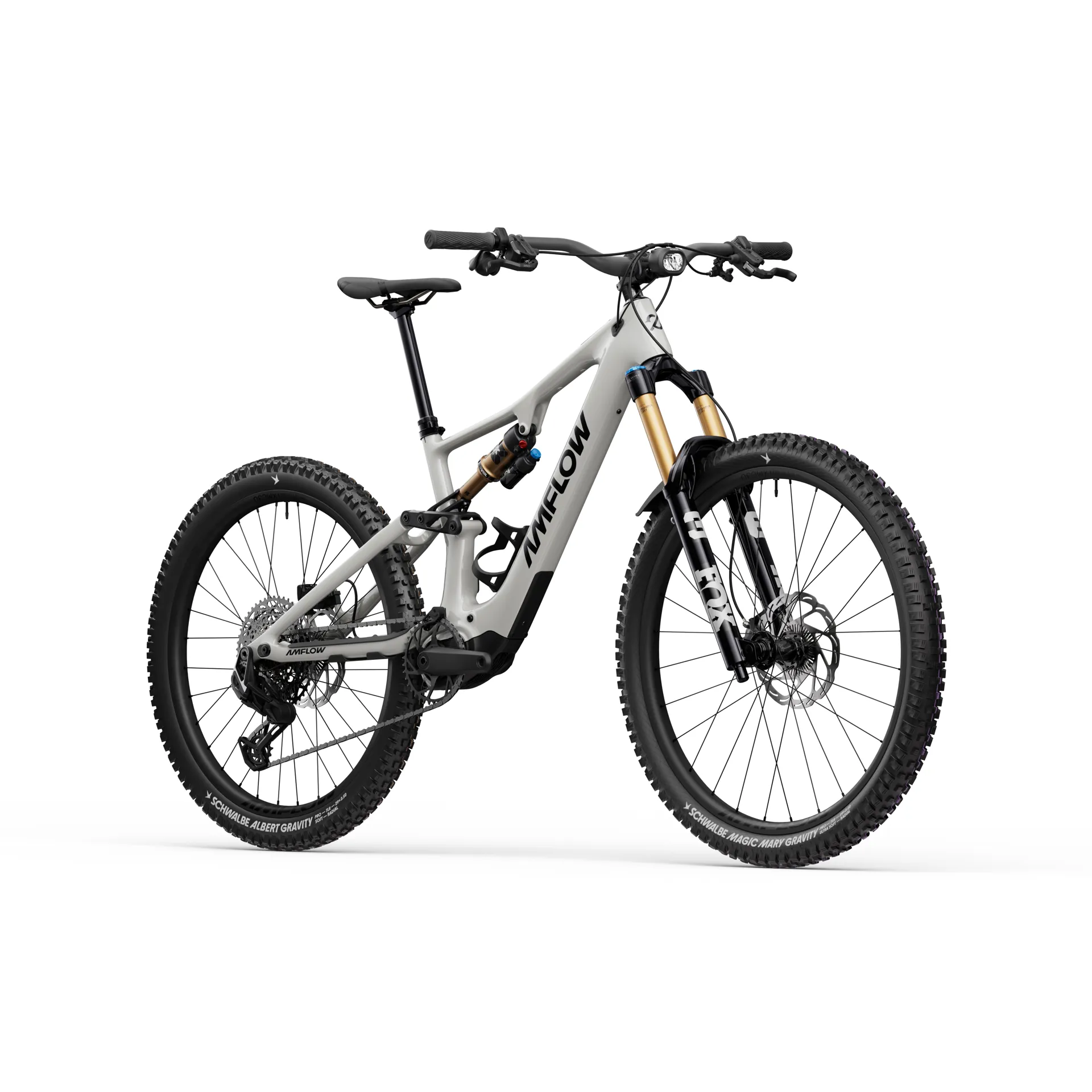

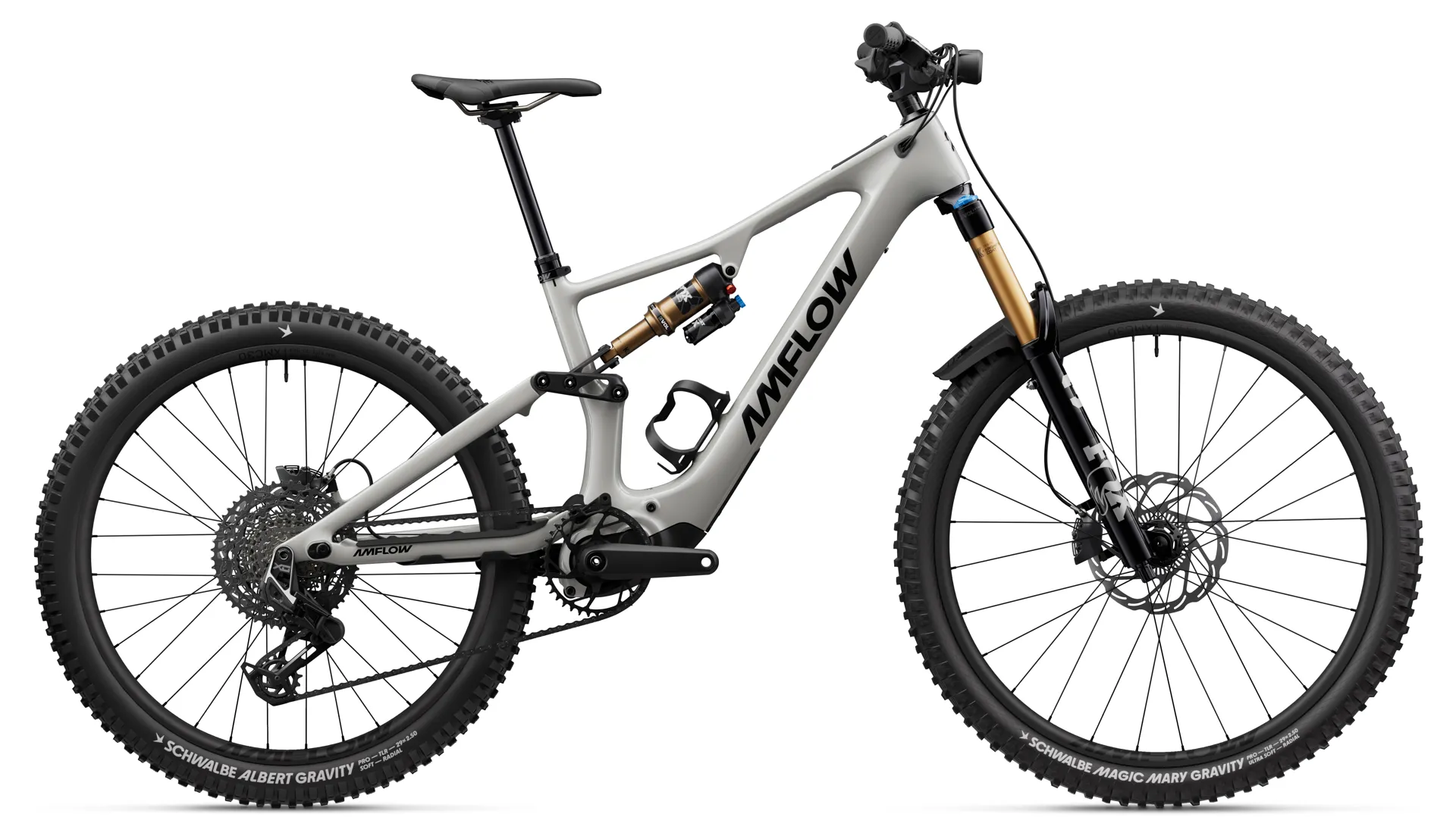

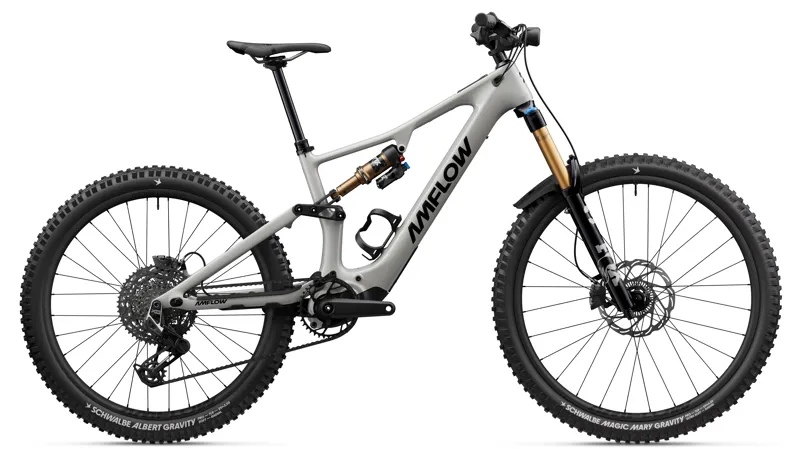

| Frame: | Amflow PX Carbon Pro Frame |
| Colour: | Moonstone Gray |
| Frame Info: | 40 adjustable geometry configurations. Compatible with 27.5″ and 29″ rear wheels |
| Motor: | Avinox M2S Drive Unit: Nominal 130Nm, Peak 150Nm |
| Screen: | Avinox Screen: 2-inch OLED Control Display |
| Battery: | Avinox Integrated Battery: 700Wh |
| Controller: | Avinox Wireless Controllers: Right and left sides |
| Charger: | Avinox Fast Charger: 12A/508W |
| Fork: | FOX 36 Factory (MY 2027) 160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset |
| Rear shock: | FOX Float X Factory (MY 2027) 2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock |
| Rear Derailleur: | SRAM X0 Eagle Transmission Derailleur |
| Chainring: | Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox |
| Shift Levers: | SRAM AXS Pod Rocker Controller |
| Cassette: | SRAM XS-1295 Eagle Transmission 10-52T |
| Chain: | SRAM X0 Eagle Transmission Chain |
| Power Supply: | Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord) |
| Crankset: | Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm) |
| Brakes: | Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers. Magura Sensor Rotor (203mm, 2.5mm) |
| Wheels: | Amflow XMC-30 Mullet Version |
| Rims: | Front Rim: Carbon, 29″, 30mm inner width, 28H, tubeless ready
Rear Rim: Carbon, 27.5″, 30mm inner width, 32H, tubeless ready |
| Spokes: | SAPIM E-Light |
| Front Hub: | Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt |
| Rear Hub: | Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD |
| Front Tyre: | Schwalbe Magic Mary Radial, 29×2.5, Gravity Pro, Ultra Soft, tubeless ready |
| Rear Tyre: | Schwalbe Albert, Radial, 27.5×2.5, Gravity Pro, Addix Soft, tubeless ready |
| Handlebar: | Amflow Enduro 35mm Carbon Handlebar - 40mm rise, 800mm wide - 5-degree upsweep, 9-degree backsweep |
| Grips: | Amflow Enduro Grip 2 Lock-on Grips |
| Stem: | Amflow Mountain Bike Split Stem Length: 35mm Clamping diameter: 35mm |
| Saddle: | Amflow Mountain Saddle Titanium |
| Seatpost: | Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm) M/L Frame: 190mm XL Frame: 210mm XXL Frame: 230mm |
| Accessories: | Avinox Front Light
Amflow Bottle Cage
IoT Nano SIM Card
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
Schwalbe Clik Valve Conversion Set
FOX 36 Mud Guard (Short)
5/10mm Dropper Post Travel Reducing Spacer
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump
Quick Start Guide |
| Weight: | M size: 20.57kg, L size: 21.14kg, XL size: 21.54kg, XXL size: 21.94kg (excluding pedals, tubeless) |
