The Whyte Kado Works is the jaw-dropping flagship electric enduro/trail bike. Full carbon, Fox Podium inverted forks, Hope brakes. Dream spec out of the box.
The Whyte Kado Works is the jaw-dropping flagship electric enduro/trail bike. Full carbon, Fox Podium inverted forks, Hope brakes. Dream spec out of the box.
Whyte

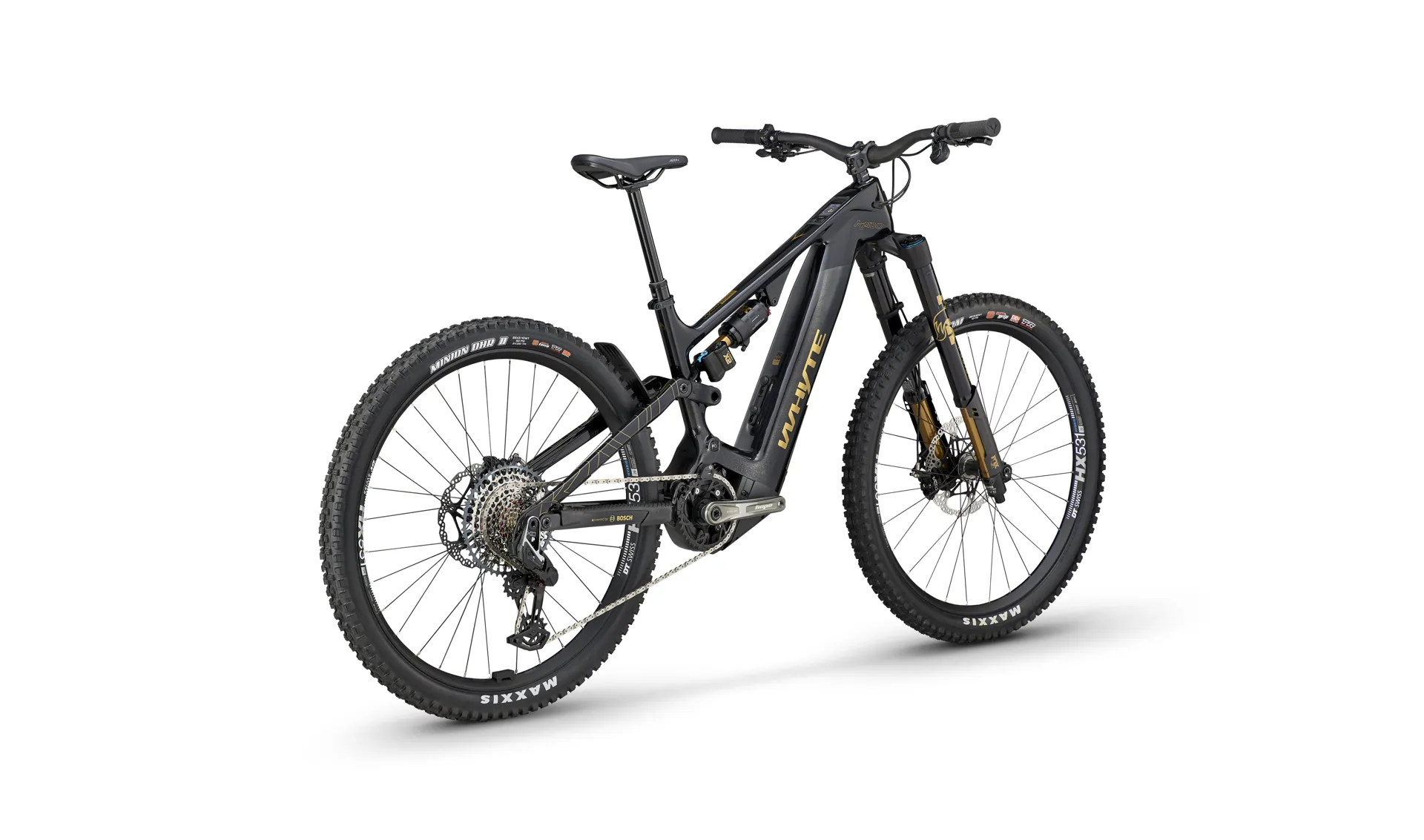

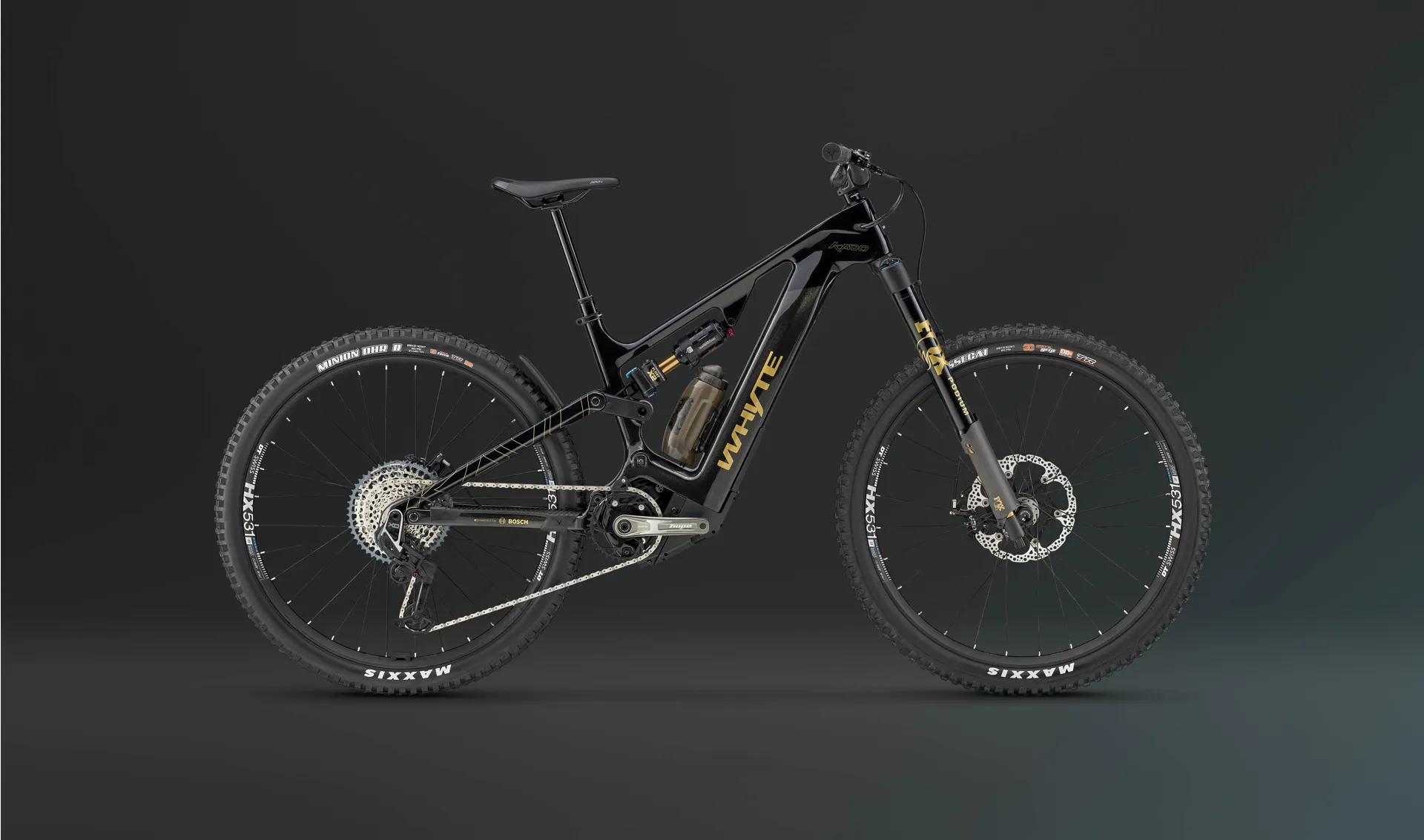

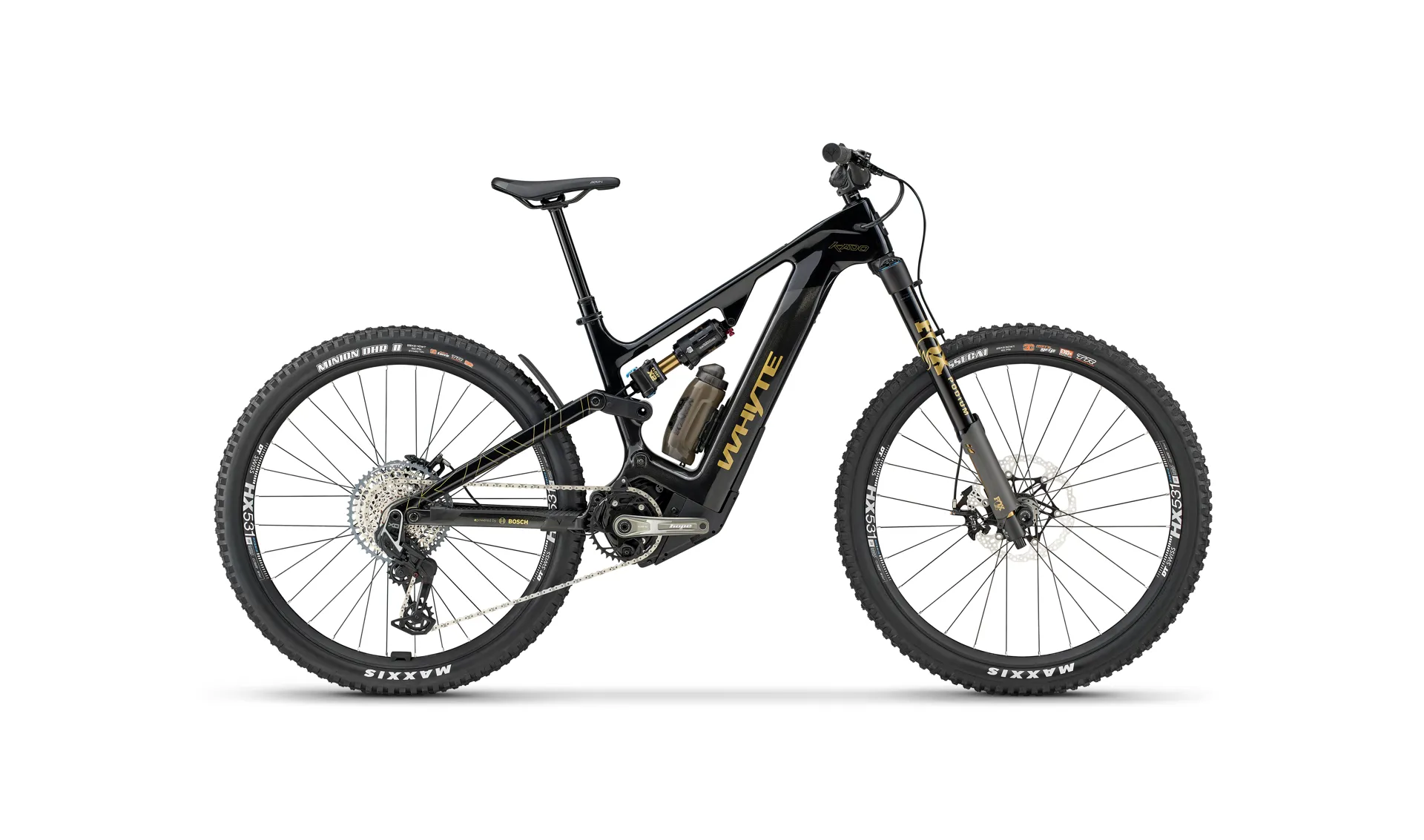

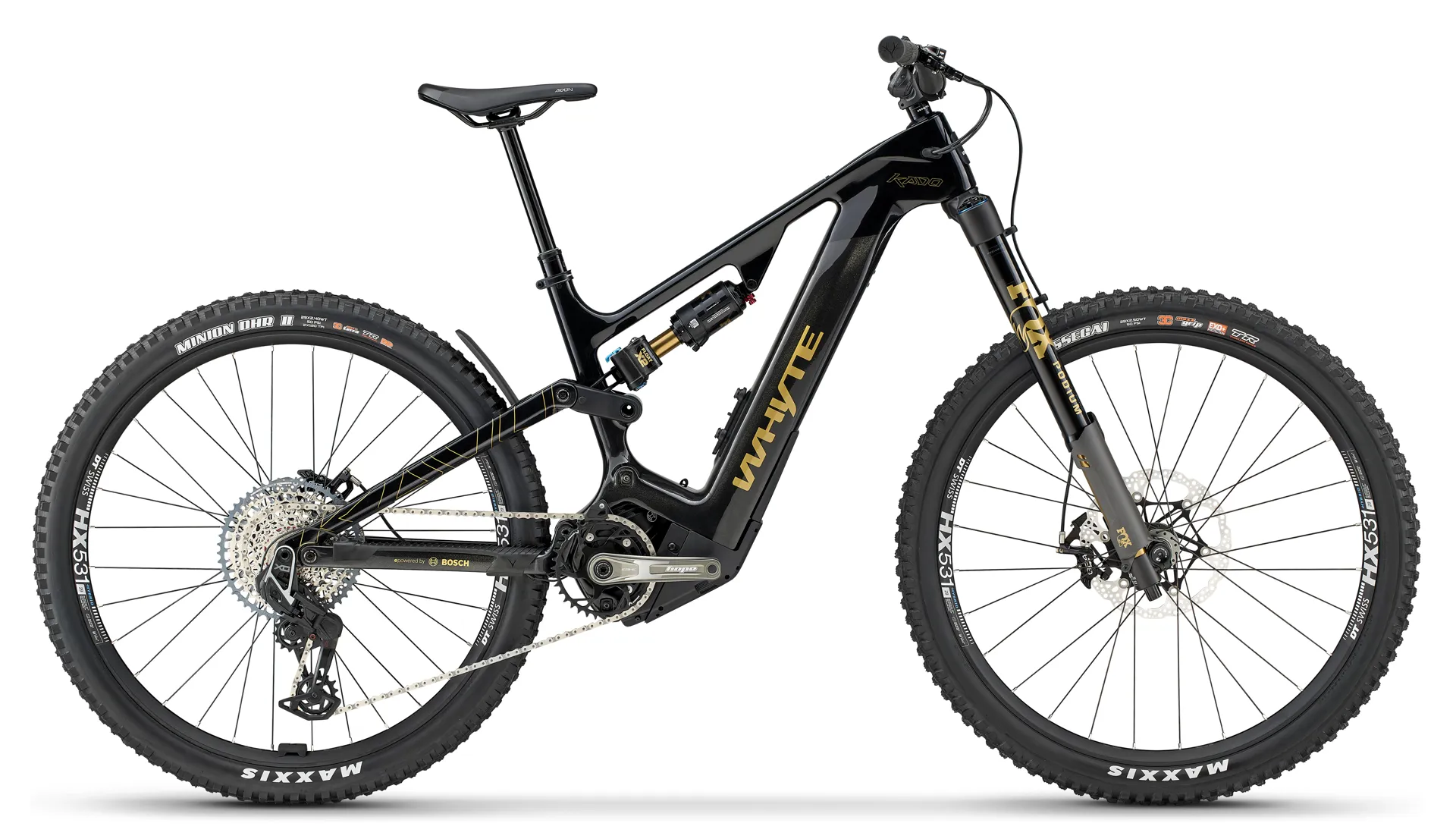

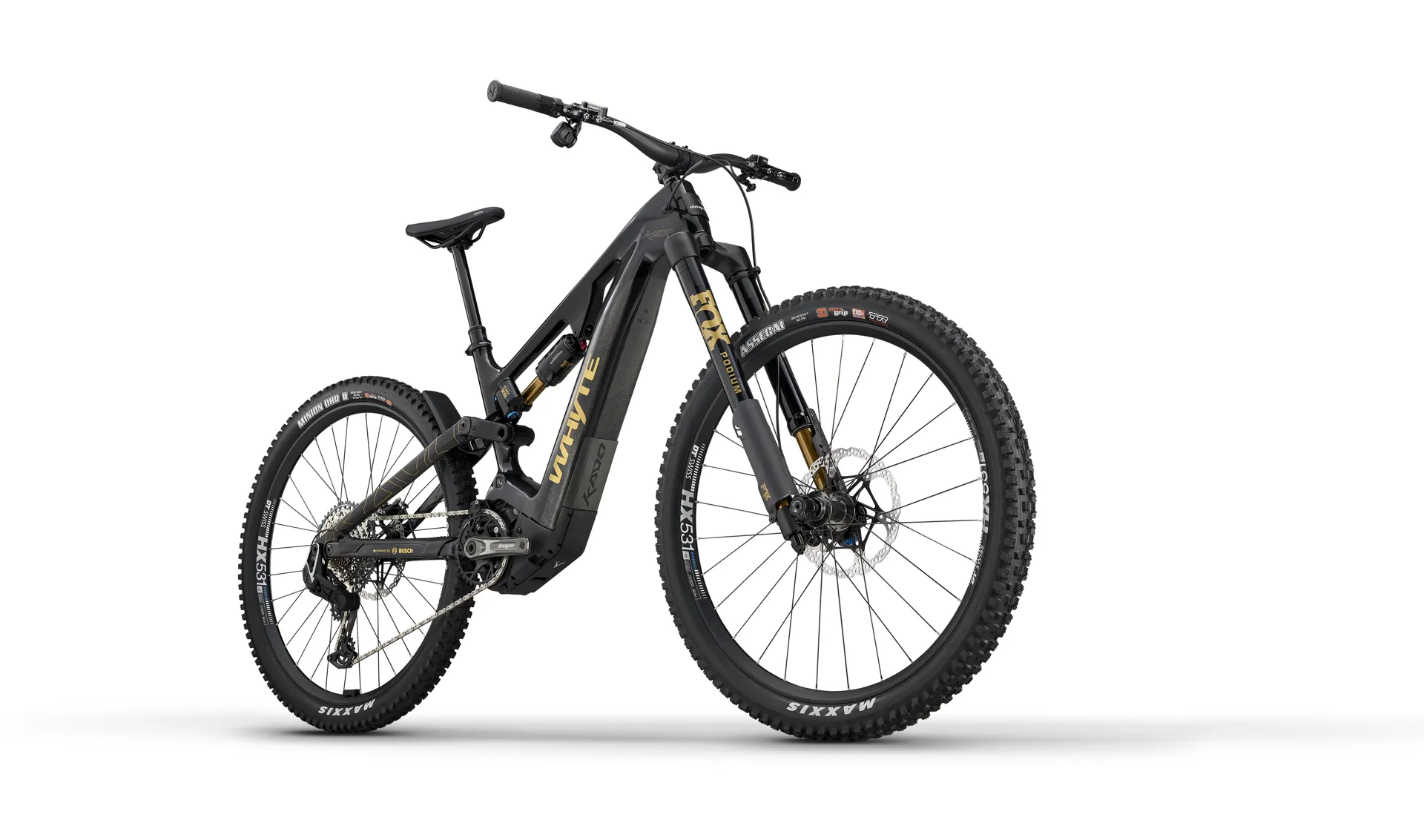

Whyte Kado Works Electric Mountain Bike in Gun Metal Black

£9,999.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Whyte Kado Works Electric Mountain Bike in Gun Metal Black

Season:2026

Brand:Whyte

Code:KadoWorksGUNBLK

PinkBike - "Amazing."

Our fastest e-enduro race bike ever

Designed, developed and proven by the UK’s first ever E-Enduro National Champion and 2024 E-Enduro Series Champion, Sam Shucksmith – both titles won aboard the prototype – the championship-winning Kado Works blends a full carbon-fibre frameset with Bosch’s latest CX motor and battery technologies. All combined with meticulously custom-tuned suspension performance and the highest performing parts list possible so you can unleash the speed – everywhere.

Highlights

  • 170mm front + 151mm rear of suspension travel.
  • Fox Podium Factory 29in fork + Fox Float X2 Factory EVOL custom-tuned shock.
  • Uni-directional full carbon fibre frame with geometry adjustment.
  • Bosch's fifth generation Performance Line CX full-torque full-power motor.
  • Ready for the latest software upgrade to unlock E-MTB+ mode + 100Nm torque + 750W peak power.
  • 800Wh removable internal battery.
  • 29in wheels front and rear + MX ready.


High performance, unleashed

We’ve poured everything into Kado Works to give you the highest performance possible: an optimised low centre of gravity delivers exceptional cornering agility, high-speed stability, and balanced handling on any terrain – no matter how fast or rowdy things get; custom-tuned suspension for the very best grip, feedback and control; confidence-inspiring geometry, and much more. All combined so you can beat the clock – and your personal best.

Charge time: 50% in 2.3hrs from empty, and to 100% in 6.9hrs with 4A Charger.

Low, centred, unstoppable

As part of our Total Geometry approach, Kado Works has been designed around the lowest, most centred centre of gravity (the point at which an object’s mass is evenly distributed and balanced) to give you the finest handling possible. By positioning the major masses of an eMTB (the motor and batteries) as low and centrally between the tyre contact patches as possible, Kado Works delivers you balanced control, effortless agility, sure-footed stability and absolute confidence. All so you can ride faster and with more poise to master every track.

Switchable batteries

With an 800Wh internal battery as standard and compatibility with Bosch’s aftermarket 250Wh ‘PowerMore’ range extender (available separately; fits size M–XL frames), Kado Works is ready to give you up to a 1050Wh of combined battery capacity. Kado Works is also compatible with Bosch’s aftermarket lighter, smaller 600Wh – PT600 – internal battery (just add our battery end caps), so you can pick and choose smaller or larger batteries for different races. And all without needing to adjust any of the battery compartment internals – just slide the old battery out, add the endcaps to the new battery, and slide it in.

Smartly connected

With the Bosch Smart System – which links up the Kado Works’s top-tube Bosch Kiox 400C LCD display, battery and motor via the eBike Flow app – you have even more information at your fingertips to manage, tailor and personalise your bike just how you want to get even more from your riding: tune the motor support levels; upgrade to the latest motor software updates, and more. We’ve also wired-in SRAM’s AXS wireless electronic rear mech directly into the bike’s main battery, so you’ll never need to remember to charge your gears again.
Technical Information
Colour:Gun metal black
Frame:Uni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts

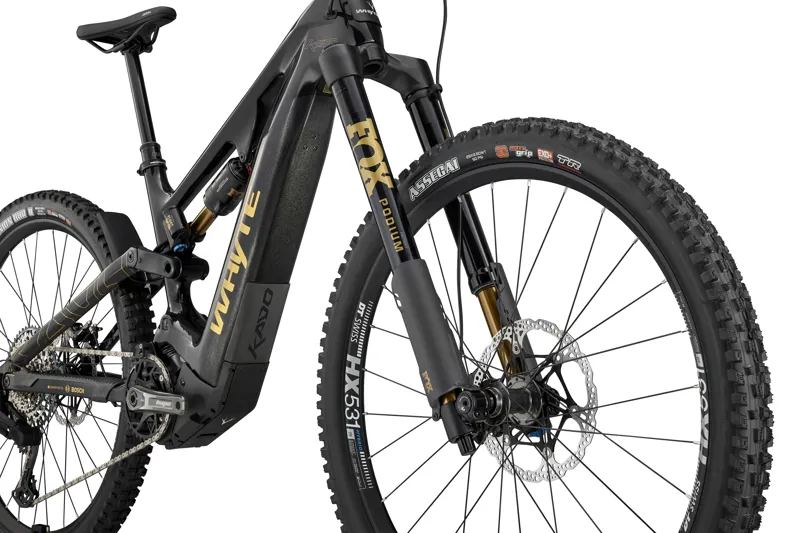

Fork:2026 Fox Podium Factory 29in, 170mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 20mm axle

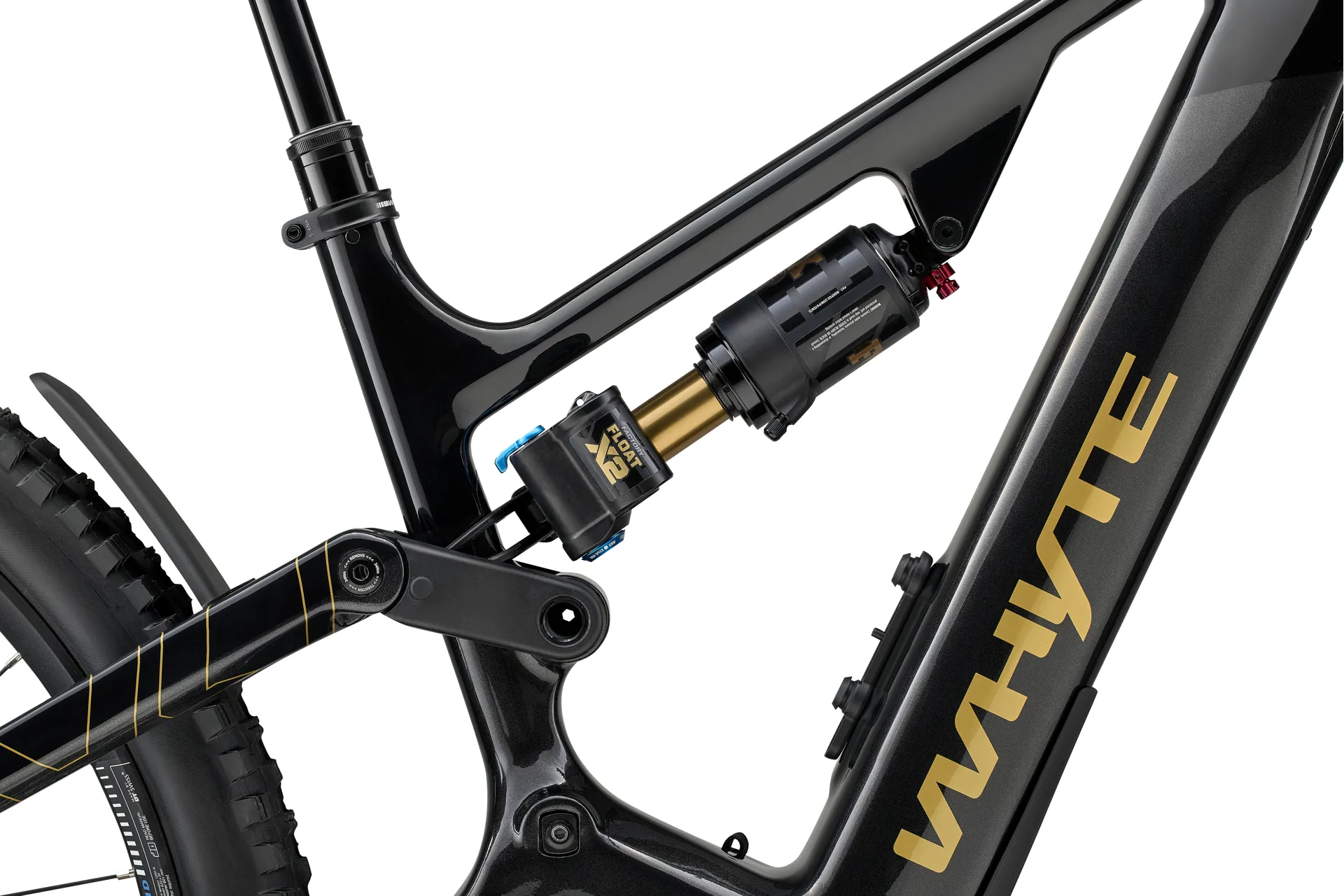

Rear shock:Fox Float X2 Factory Series, EVOL, lock out, 230mm x 57.5mm, custom tuned for Whyte
Headset:FSA No. 55R, 1-1/8in upper and 1.5in lower
Rear hub:Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole
Front hub:Hope Pro 5, six bolt, 20mm x 110mm Boost spacing, 28 hole
Spokes:DT Swiss Elemental
Rims:DT HX531, 30mm internal
Tyre:Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ sidewall protection, 3C MaxxGrip, dual compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 29in x 2.4in 120TPI, Double Down casing, 3C MaxxTerra, dual compound, rear
Shift levers:SRAM AXS Pod, right, MMX, 12 speed
Front mech:N/A

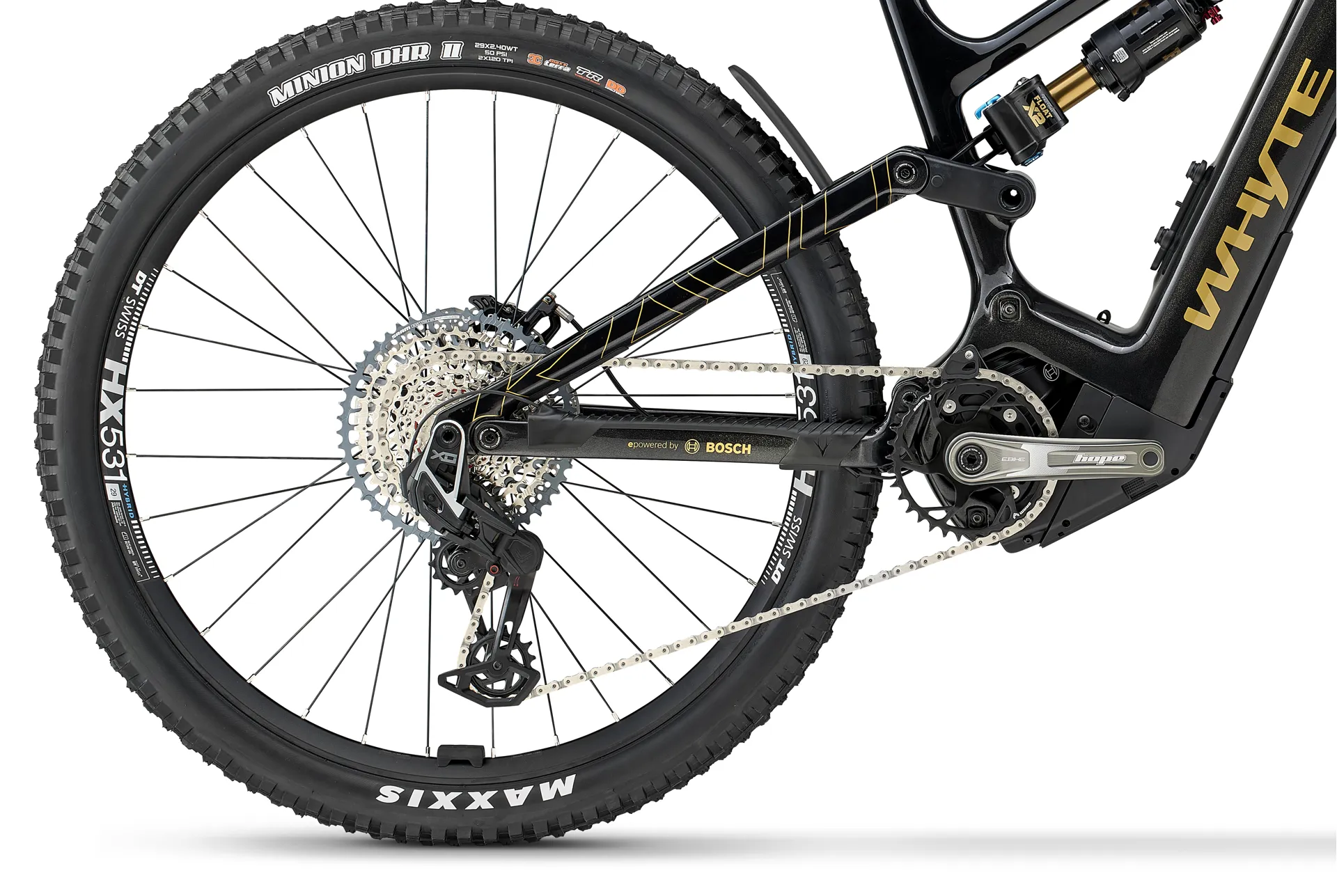

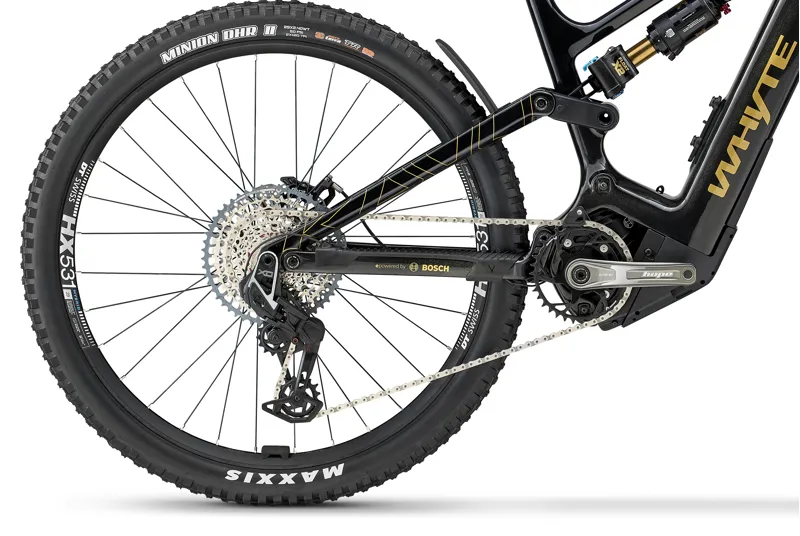

Rear mech:SRAM XO T-Type AXS, 12 speed, powered off the Bosch CX motor system’s internal battery
Cassette:SRAM XS 1275, T-Type, 10-52T, 12 speed
Chain:SRAM GX T-Type, 12 speed
Crankset:Hope E-Bike cranks, 155mm length, Bosch mounting, 36T chainring T-Type
Bottom bracket:N/A

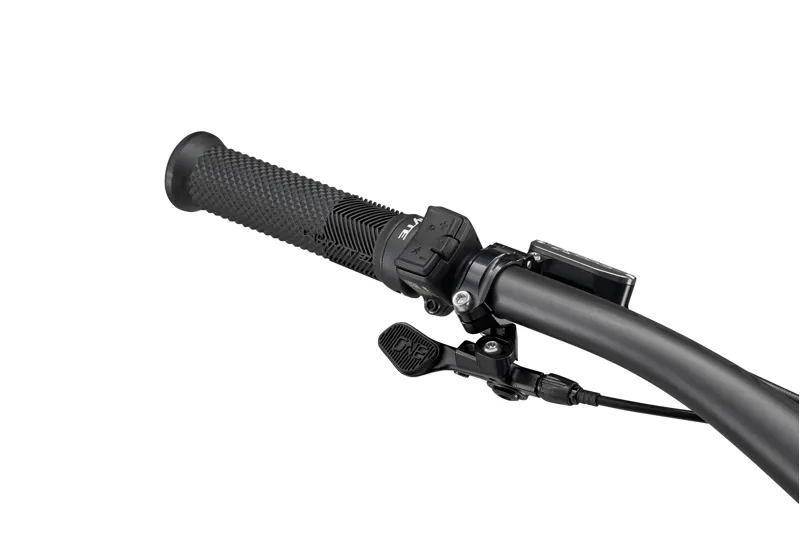

Seatpost:One Up Components V3 Dropper Post, MMX Paddle remote lever, size-specific drop (size S: 150mm travel; size M: 170mm travel; size L and XL: 210mm travel)
Saddle:Fi’zi:k Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail
Handlebar:Race Face ERA Carbon, 20mm rise (sizes S/M) / 40mm rise (sizes L/XL), 35mm bar bore, 800mm wide
Stem:Whyte Trail full CNC, 32mm extension, 35mm bar bore
Grips:Whyte Enduro lock-on
Brakes front:Hope EVO GR4, four piston hydraulic, 220mm diameter floating disc rotor

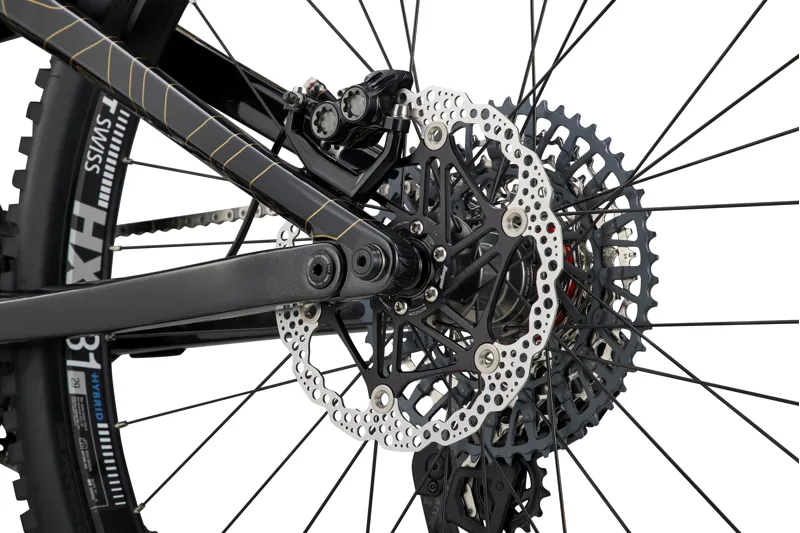

Brakes rear:Hope EVO GR4, four piston hydraulic, 200mm diameter floating disc rotor

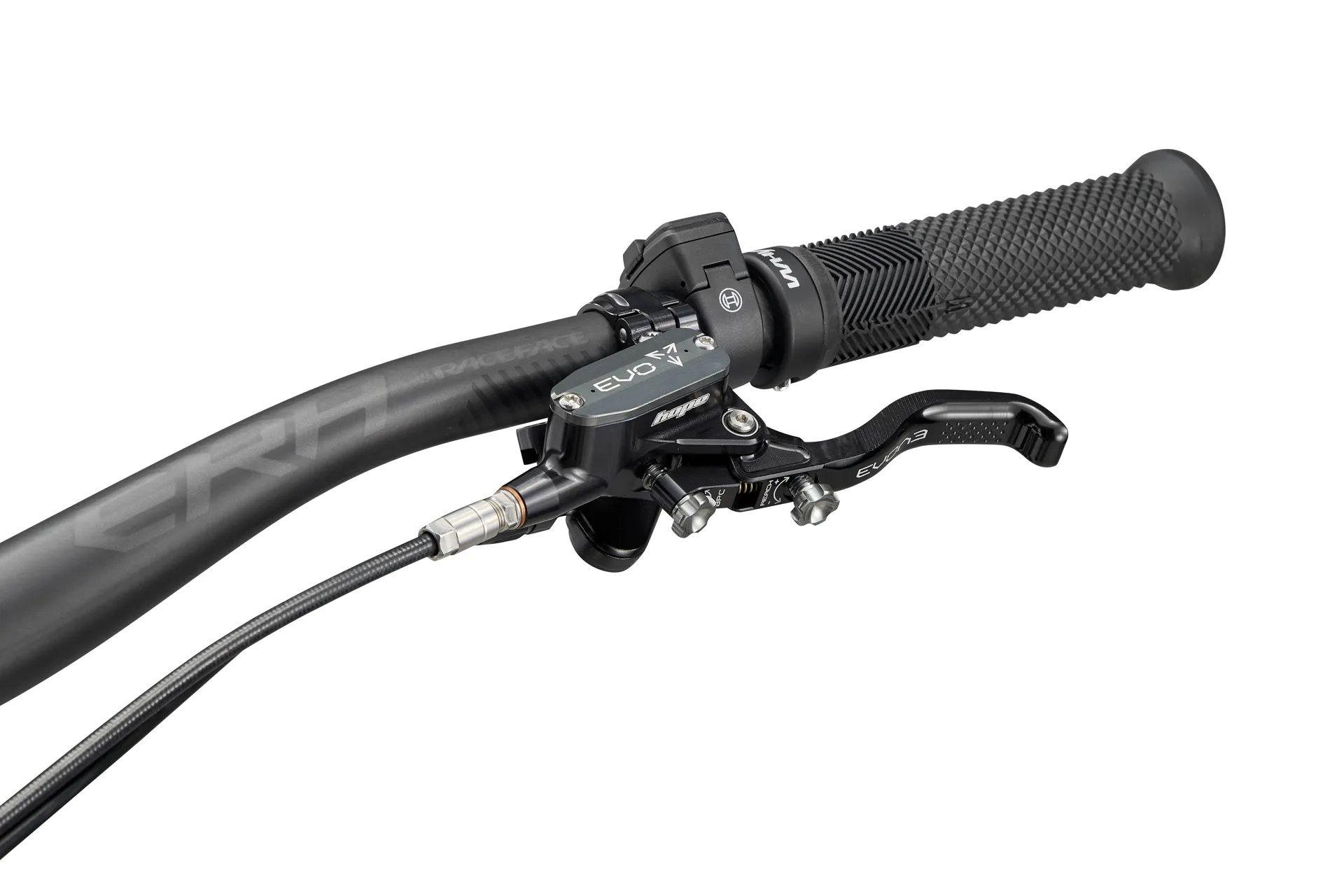

Brake levers:Hope EVO GR4
Pedals:Fibre reinforced composite platform
Weight:TBC

eBike Specifications


eBike Motor:Bosch Performance Line CX (Smart System) Drive Unit with 100Nm maximum torque, 750W of peak power and 250W of nominal power. Features four power mode settings including Tour+ and eMTB+. AXS derailleur powered off motor.

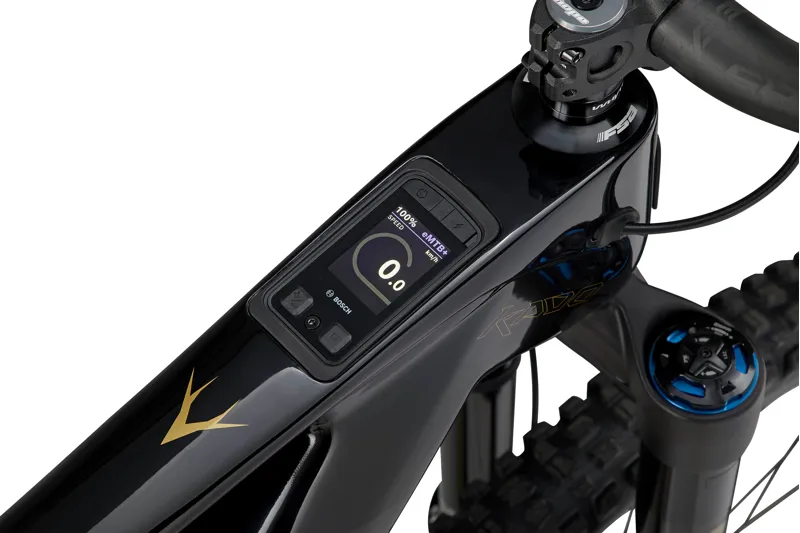

eBike Display:Bosch Kiox 400C LCD display mounted within the top tube, paired with the discrete bar mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.
eBike Battery:Bosch PowerTube 800Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. PowerMore compatible.
eBike Battery Charger:Charger 4A (230V)
Sizing Information
SMLXL
5’3″ – 5’6”5’6″ – 5’10”5’10” – 6’2″6’2″ – 6’6″
160 – 168 cm168 – 178 cm178 – 188 cm188 – 198 cm
Reach: 431mm
Stack: 628.7mm
Reach: 456mm
Stack: 640.5mm
Reach: 481mm
Stack: 652.3mm
Reach: 506mm
Stack: 663.2mm
