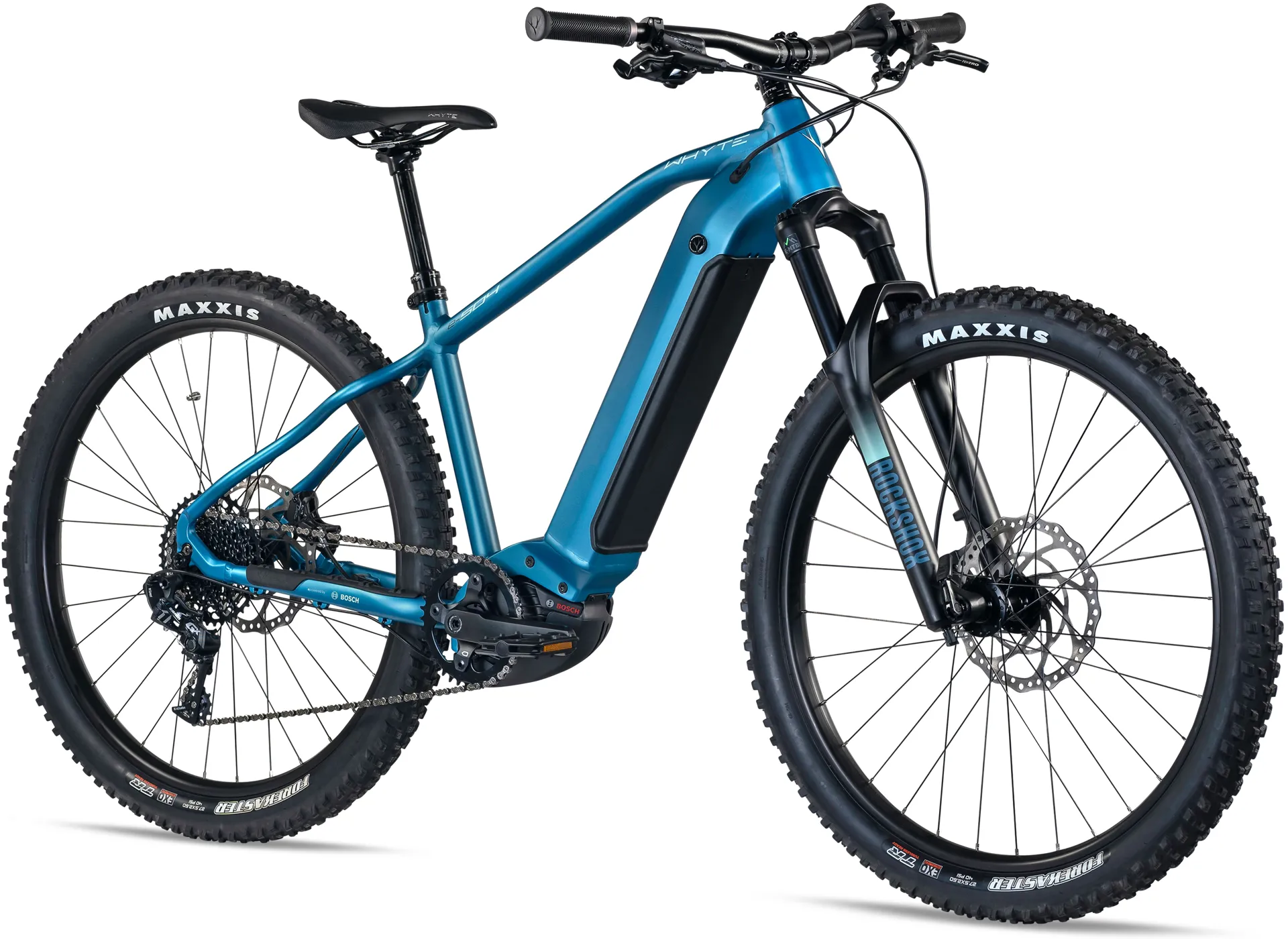

The Whyte E-504 is a hardtail E-MTB with a compact geometry which maybe preferred by shorter riders, this bike will take you efficiently on & off-road.
The Whyte E-504 is a hardtail E-MTB with a compact geometry which maybe preferred by shorter riders, this bike will take you efficiently on & off-road.
Whyte

2023 Whyte E-504 Hardtail Electric Mountain Bike

£2,795.00 £3,825.00 26% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

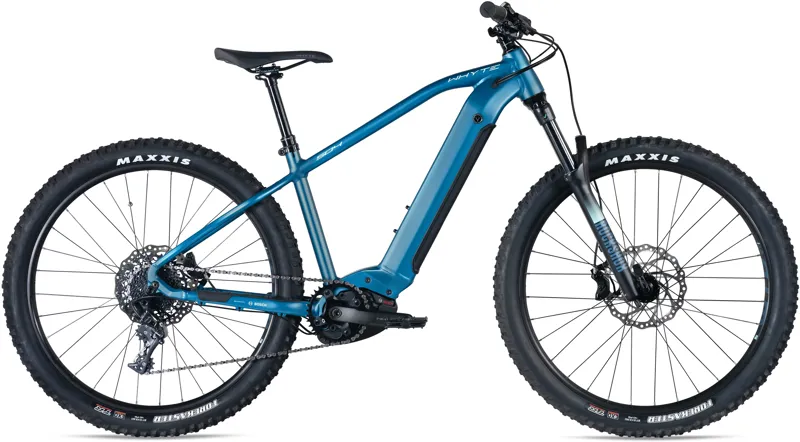

2023 Whyte E-504 Hardtail Electric Mountain Bike

Season:2023

Brand:Whyte

Code:21-WE504

WHYTE e-Hardtails-Super-versatile, power-assisted performance with all-weather reliability.

Why Whyte?- Whyte design means outstanding handling, balance and control with UK weatherproof construction. Add a complete Performance CX eSystem from Bosch and you’ve got a performance package which few can match with quality engineering and unbeatable backup.

Ride Character:- These exceptionally versatile bikes refuse to be pigeonholed – whether you’re upgrading your commute or heading for the hills, the all-new Whyte eHardtails will handle anything the road or forest has in store.

Compact Geometry:- The E-504 is the compact geometry version of the 505. The geometry is modified, and is aimed at females, shorter, and/or younger riders.
Technical Information
Drive Unit:Performance CX 85Nm
Battery:500Wh
Battery Charger:2 Amp
Display:Purion


Colour:Matt Diesel Light Blue/Slate
Frame:6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
Fork:RockShox 35 Gold RL 27.5", 120mm Travel, 37mm Offset, DebonAir, Fast Black Coating, Adjustable Compression and Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
Rear shock:N/A
Headset:FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
Rear hub:Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Front hub:Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Spokes:DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples
Rims:WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Tyre:Maxxis Forekaster TR 27.5" x 2.6" 60TPI, EXO Sidewall Protection
Shift levers:SRAM GX, 11 Speed
Front mech:N/A
Rear mech:SRAM GX, 11 Speedu
Cassette:SRAM PG-1130, 11-42, 11 Speed
Chain:KMC NPBK Sport, 11 Speed
Crankset:Whyte, Steel narrow/wide, 165mm, Direct Mount 36T for Bosch Performance Line CX, Black
Bottom bracket:N/A
Seatpost:Whyte drop.it, 30.9, XS 100mm, S 125mm, M 150mm Travel, Paddle Remote Lever
Saddle:Whyte Custom, Triple Panel Design
Handlebar:Whyte 6061 Alloy, XS and S 15mm Rise, 31.8mm, 760mm, M 30mm Rise, 31.8mm, 780mm Wide
Stem:Whyte Alloy 6061, 35mm Extension
Grips:Whyte Lock-on V Grip
Brakes front:Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount
Brakes rear:Tektro Orion, 4-Piston with Sintered Metal Pads, 200mm Disc, Post Mount, Internal Routing
Brake levers:Tektro Orion
Pedals:None
Sizing Information
XSSM
4’10″ – 5’2″5’2″ – 5’6″5’6″ – 5’10”
148 – 157 cm157 – 168 cm168 – 178 cm
