The Zenith Trail is the top specifcation alloy frameset model. With 29" wheels and modern geometry the Zenith crosses the line between XC and trail.
The Zenith Trail is the top specifcation alloy frameset model. With 29" wheels and modern geometry the Zenith crosses the line between XC and trail.
Saracen

2018 Saracen Zenith Trail

£915.75 £1,399.99 35% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

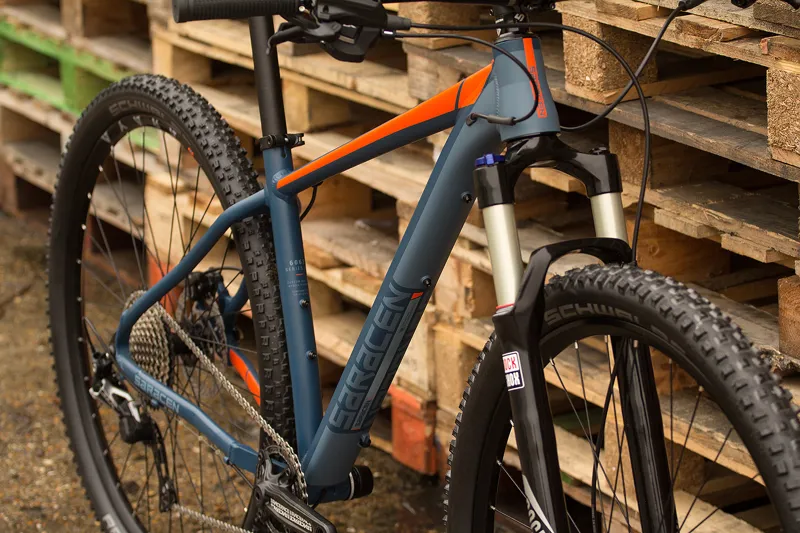

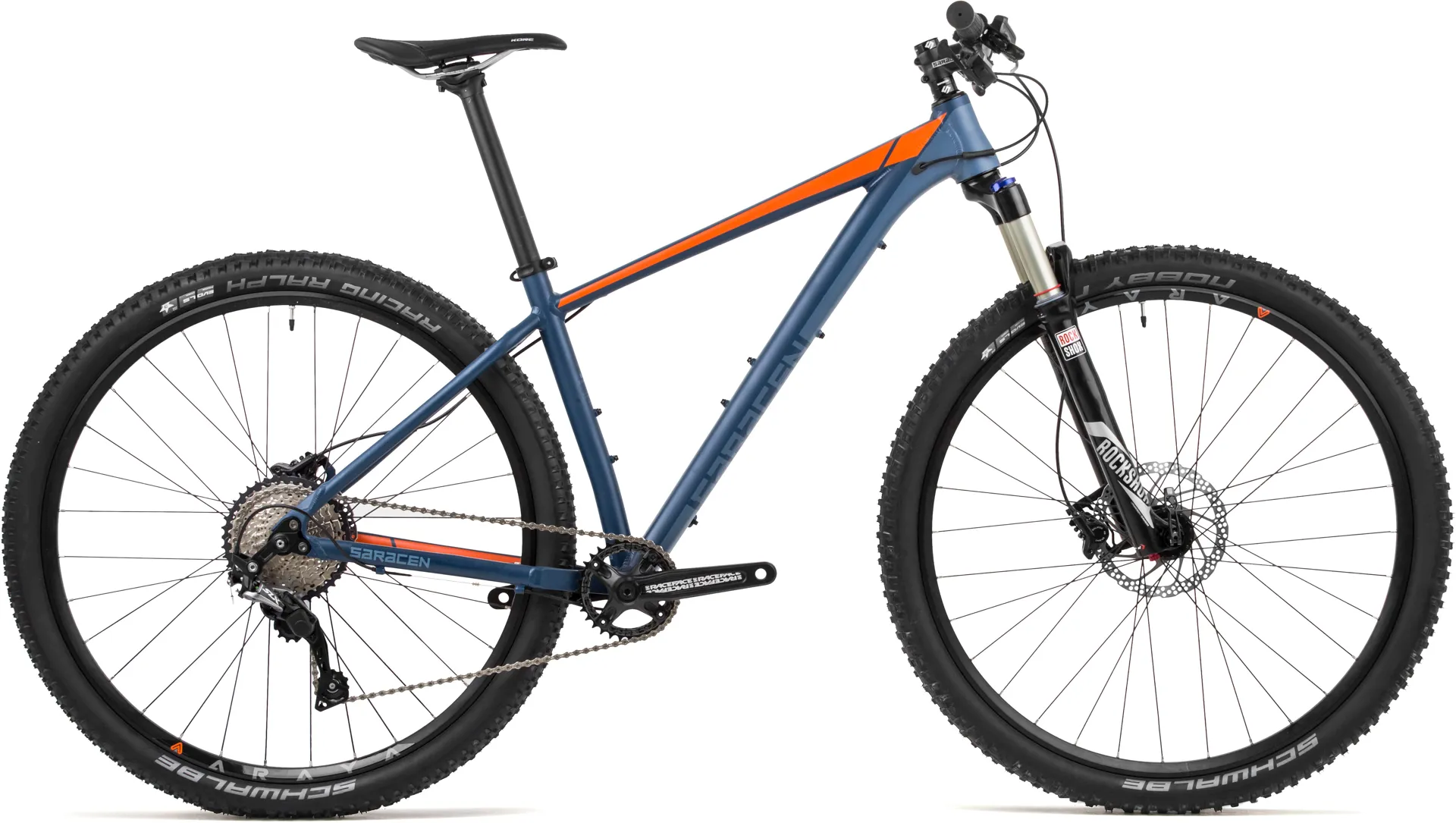

2018 Saracen Zenith Trail

Season:2018

Brand:Saracen

Code:RN1612

Call it XC, call it trail. The Zenith is equally at home on either!

It's a pure, no fuss bike running a Rockshox Recon Gold RL fork and a simple 1x11 Shimano set-up. Schwalbe Nobby Nick on the front and a Schwalbe Racing Ralph EVO on the rear to keep you railing berms and smashing miles of singletrack all day long.

Technical Information

FRAME

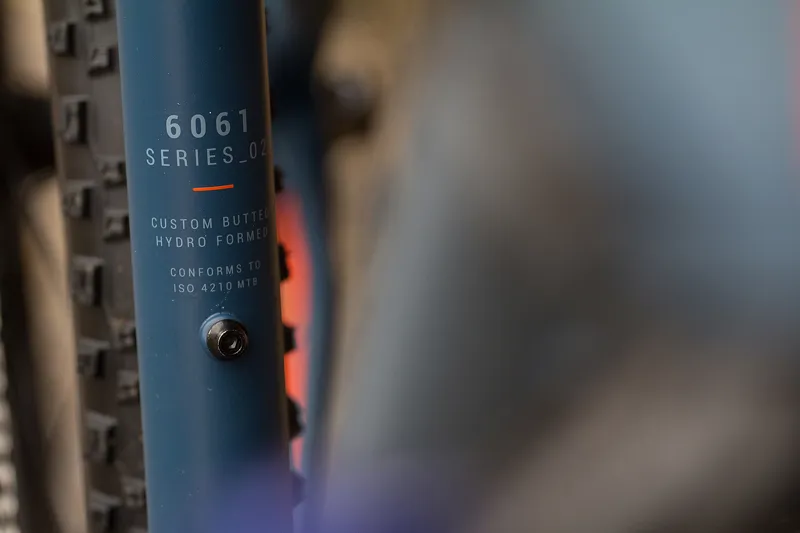

  • Series 2 custom butted and hydroformed 6061 alloy tubeset / ZS44-ZS56 tapered headtube / Chip-Slot dropout system / dropper post ready / UK developed

DRIVETRAIN

  • Shifters / Shimano SLX M7000 Rapidfire Plus 1x11 speed
  • Rear Derailleur / Shimano SLX M7000 Shadow Plus
  • Chainset / Raceface RIDE single 32T narrow wide 170-175mm
  • Cassette / Shimano M7000 11 speed cassette 11-42T
  • Chain / KMC X11L
  • Bottom Bracket / Raceface X-Type

BRAKES

  • Calipers / Shimano M506/M447 180/160mm
  • Levers / Shimano M506

SUSPENSION

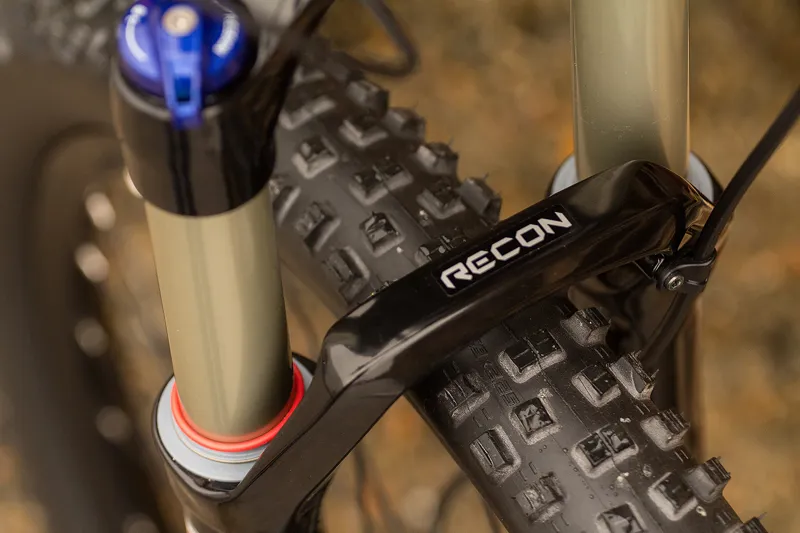

  • Fork / Rockshox Recon Gold RL-A4 / 100mm travel / Solo Air / tapered alloy steerer / low speed compression to lock / rebound adjust / 15x100 / Maxle Stealth

WHEELSET

  • Rims / Araya DS-700 doublewall alloy 32h
  • Hubs / Formula DC-71 sealed bearing 32h front / Formula DCL-360 sealed bearing 32h rear / Shimano E-Thru AX56 axle
  • Spokes / Double-butted stainless steel
  • Tyres / Schwalbe Nobby Nick 29 x 2.25; front / Schwalbe Racing Ralph EVO 29 x 2.25; rear

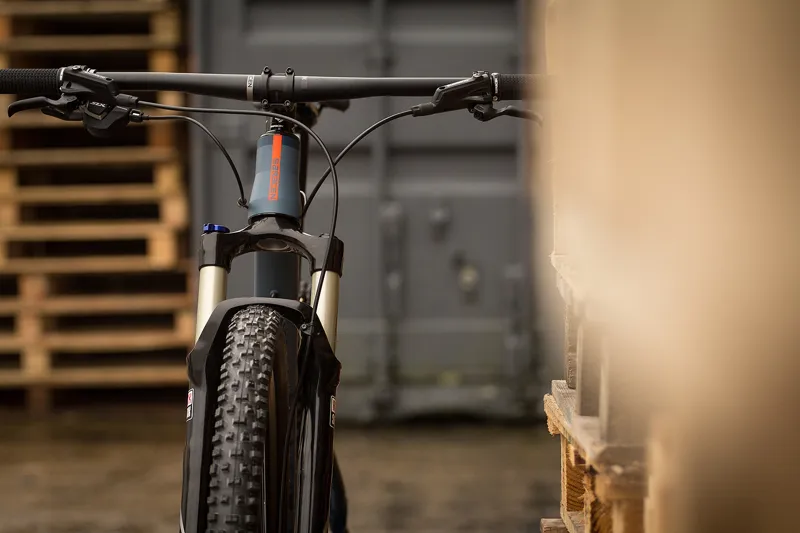

COCKPIT

  • Headset / FSA NO.57SC
  • Bar / Saracen OS 6061 DB alloy riser bar / 740mm wide / 0mm rise / 6 degree up bend / 9 degree back bend
  • Stem / Saracen 6061 3D-forged alloy / 60mm / A-head / -7 degree rise / 31.8mm clamp
  • Grips / Saracen lock-on grip
  • Saddle / Kore Fazer EX
  • Seatpost / Alloy micro-adjust / 30.9mm



Sizing Information

Zenith Trail Sizing Guide

GEOMETRY

zenith Geometry Drawing
FRAME SIZES 15" 17" 19" 21"
1. SEAT TUBE LENGTH (MM) 383 432 483 533
2. HORIZONTAL TOPTUBE LENGTH (MM) 590 610 635 660
3. REACH (MM) 401 418 445 468
4. STACK (MM) 611 611 621 631
5. HEADTUBE LENGTH (MM) 100 100 110 120
6. HEAD ANGLE 68° 68° 68° 68°
7. SEAT ANGLE 73° 73° 73° 73°
8. CHAINSTAY LENGTH (MM) 440 440 440 440
9. BB DROP (MM) 65 65 65 65
10. WHEELBASE LENGTH (MM) 1,114 1,134 1160 1186
