The Tufftrax Comp is top of the range in the Tufftrax series. A quality alloy frame, lock-out fork and Shimano hydraulic brakes are a welcome upgrade for 2018.
The Tufftrax Comp is top of the range in the Tufftrax series. A quality alloy frame, lock-out fork and Shimano hydraulic brakes are a welcome upgrade for 2018.
Saracen

2018 Saracen Tufftrax Comp Disc

£315.00 £499.99 37% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

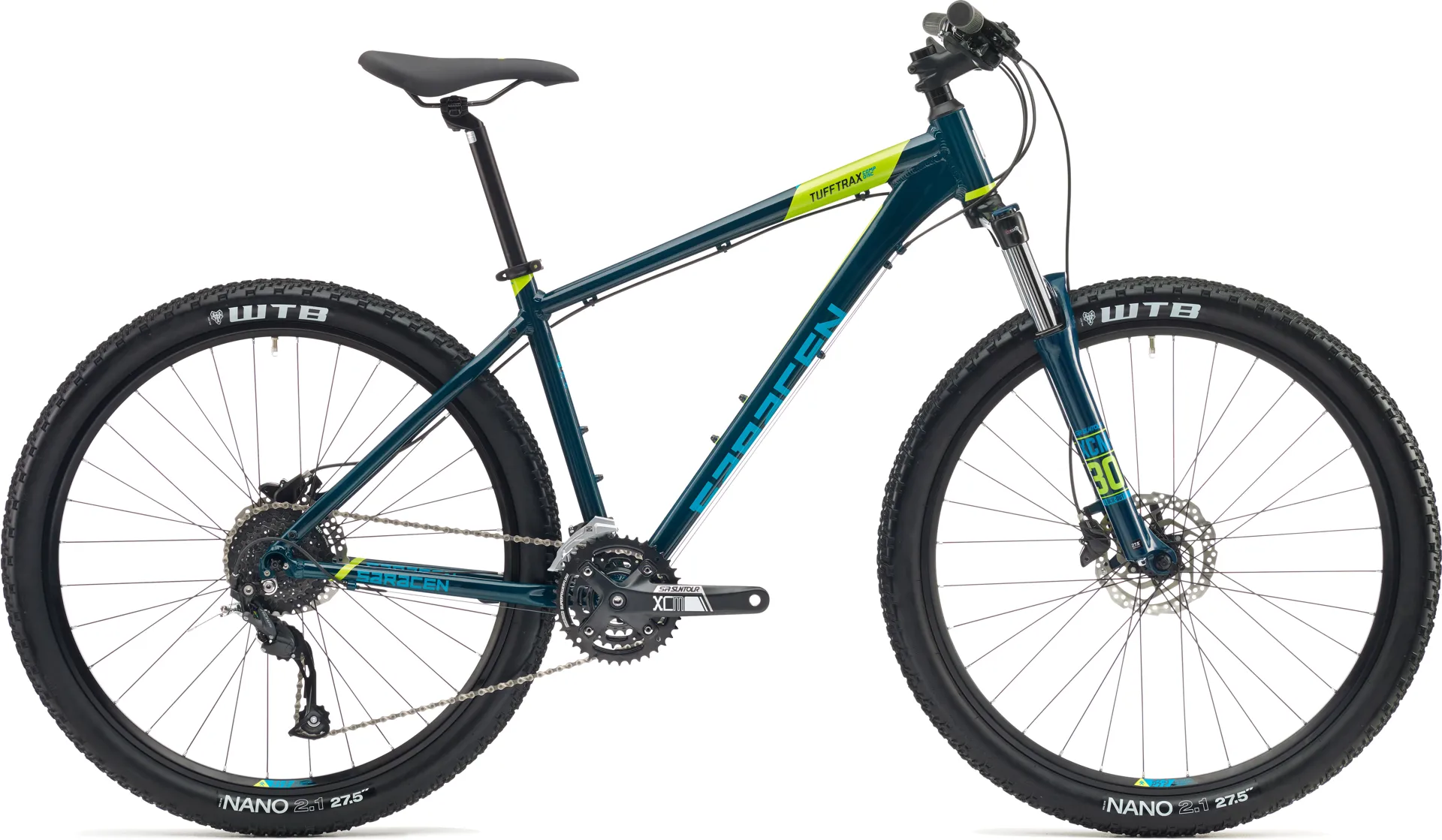

2018 Saracen Tufftrax Comp Disc

Season:2018

Brand:Saracen

Code:RN2118

The Tufftrax Comp disc has all the features an apprentice biker needs to start hitting the trails. A carefully thought out spec gives you a quality Suntour XCM fork with 100mm of bump eating travel, 27speed Shimano/Suntour drivetrain and powerful Shimano disc brakes. Add our lightweight 6061 alloy frame and from the showroom floor it's a great bike for getting down and dirty!

Technical Information

FRAME

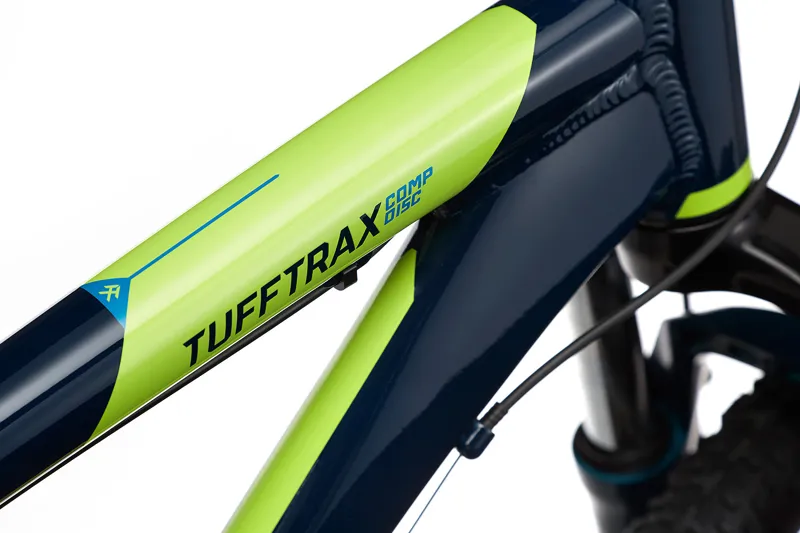

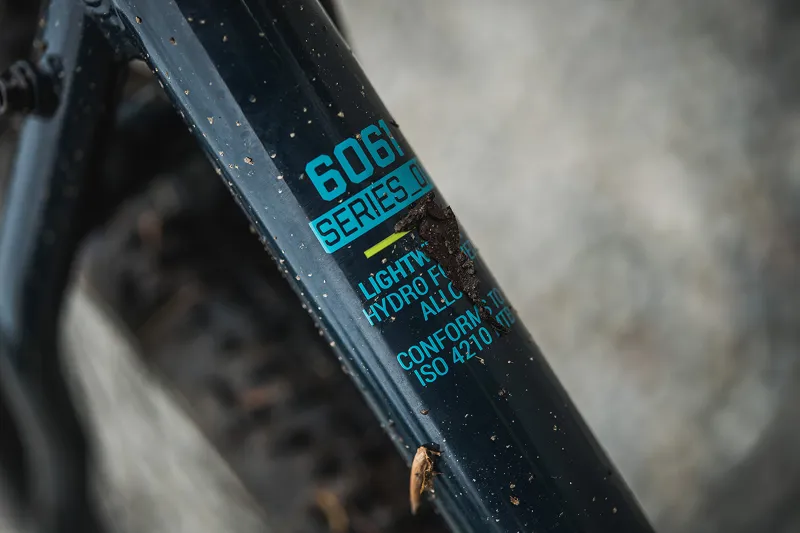

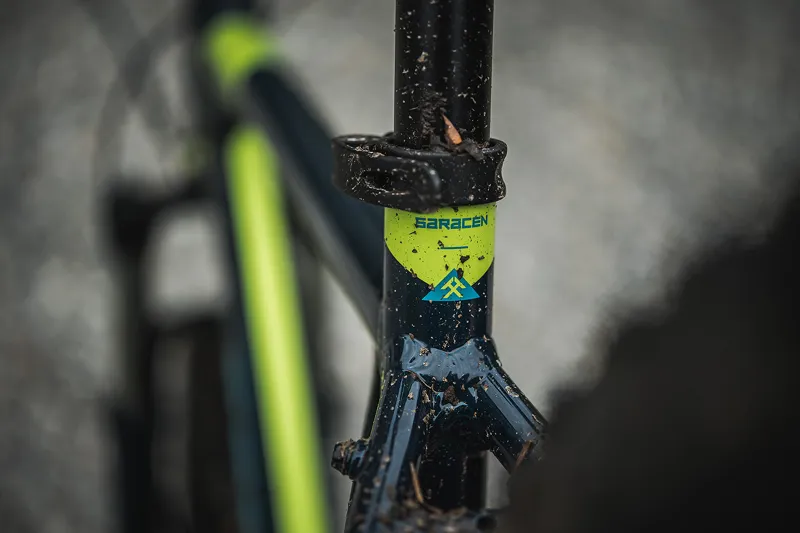

  • Series 1 custom butted and formed 6061 alloy tubeset / XX44 headtube / UK developed

DRIVETRAIN

  • Shifters / Shimano Altus M2000 Rapidfire Plus 3x9 speed

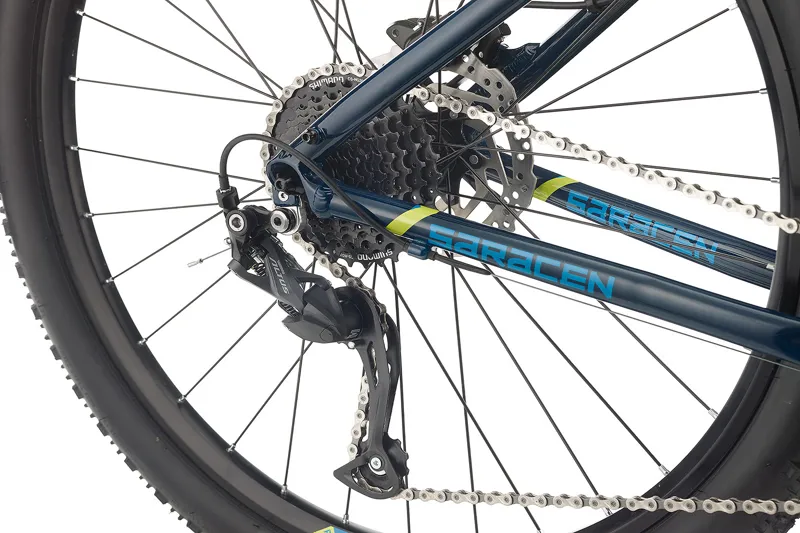

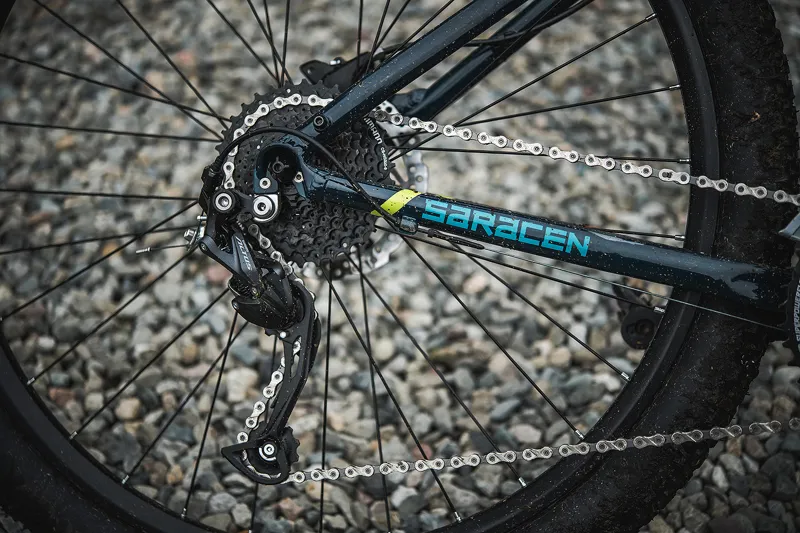

  • Rear Derailleur / Shimano Altus M2000
  • Front Derailleur / Shimano Altus M2000
  • Chainset / Suntour XCT-T414 22/32/44T / 170-175mm
  • Cassette / Shimano HG200 9 speed cassette 11-34T
  • Chain / KMC X9
  • Bottom Bracket / CH52 sealed cartridge

BRAKES

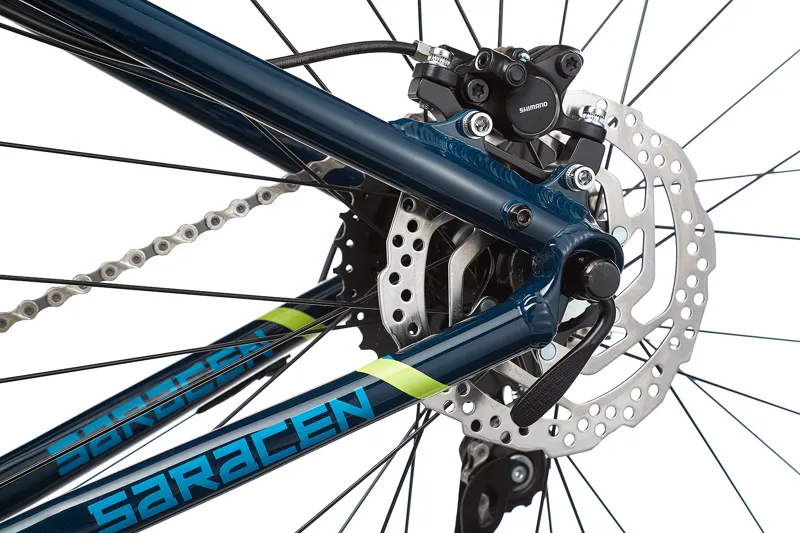

  • Calipers / Shimano M315 160/160mm
  • Levers / Shimano M315

SUSPENSION

  • Fork / Suntour XCM HLO / 100mm travel / pre-load adjust / lock-out

WHEELSET

  • Rims / Araya DM-650 doublewall alloy 32h
  • Hubs / Shimano TX505 Center Lock 32h front / rear
  • Spokes / Steel 14g
  • Tyres / WTB Nano Comp SE 27.5 x 2.1;

COCKPIT

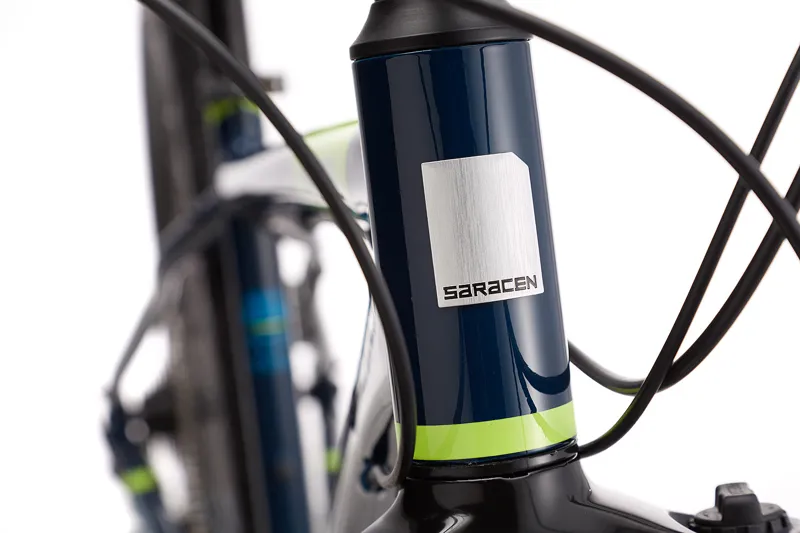

  • Headset / Chin Haur

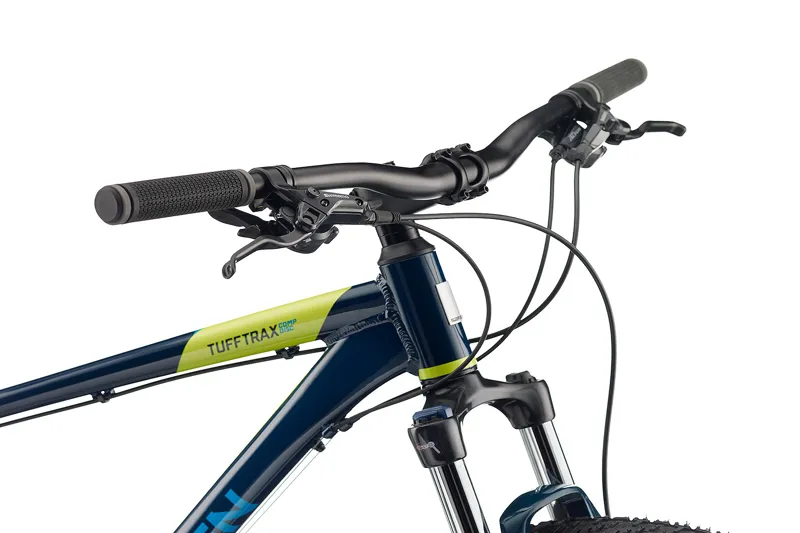

  • Bar / Saracen OS 6061 alloy riser bar / 720mm wide / 18mm rise / 6 degree up bend / 8 degree back bend
  • Stem / Saracen 6061 alloy / 75mm / A-head / 10 degree rise / 31.8mm clamp
  • Grips / Saracen dual-density grip
  • Saddle / Saracen custom
  • Seatpost / Alloy micro-adjust / 27.2mm



Sizing Information

Tufftrax Comp Disc Sizing Guide

GEOMETRY

tufftrax Geometry Drawing
FRAME SIZES 13" 15" 17" 19" 21"
1. SEAT TUBE LENGTH (MM) 330 381 432 483 533
2. HORIZONTAL TOPTUBE LENGTH (MM) 555 575 595 620 635
3. REACH (MM) 380 400 420 440 462
4. STACK (MM) 575 583 591 602 611
5. HEADTUBE LENGTH (MM) 90 100 110 110 120
6. HEAD ANGLE 69° 69° 69° 69° 69°
7. SEAT ANGLE 73° 73° 73° 73° 73°
8. CHAINSTAY LENGTH (MM) 425 425 425 425 425
9. BB DROP (MM) 40 40 40 40 40
10. WHEELBASE LENGTH (MM) 1,054 1,074 1,095 1,116 1,135
