| Colour: | Gloss dune tan yellow with matte black |
| Frame: | Uni-directional carbon mainframe, tapered head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts |

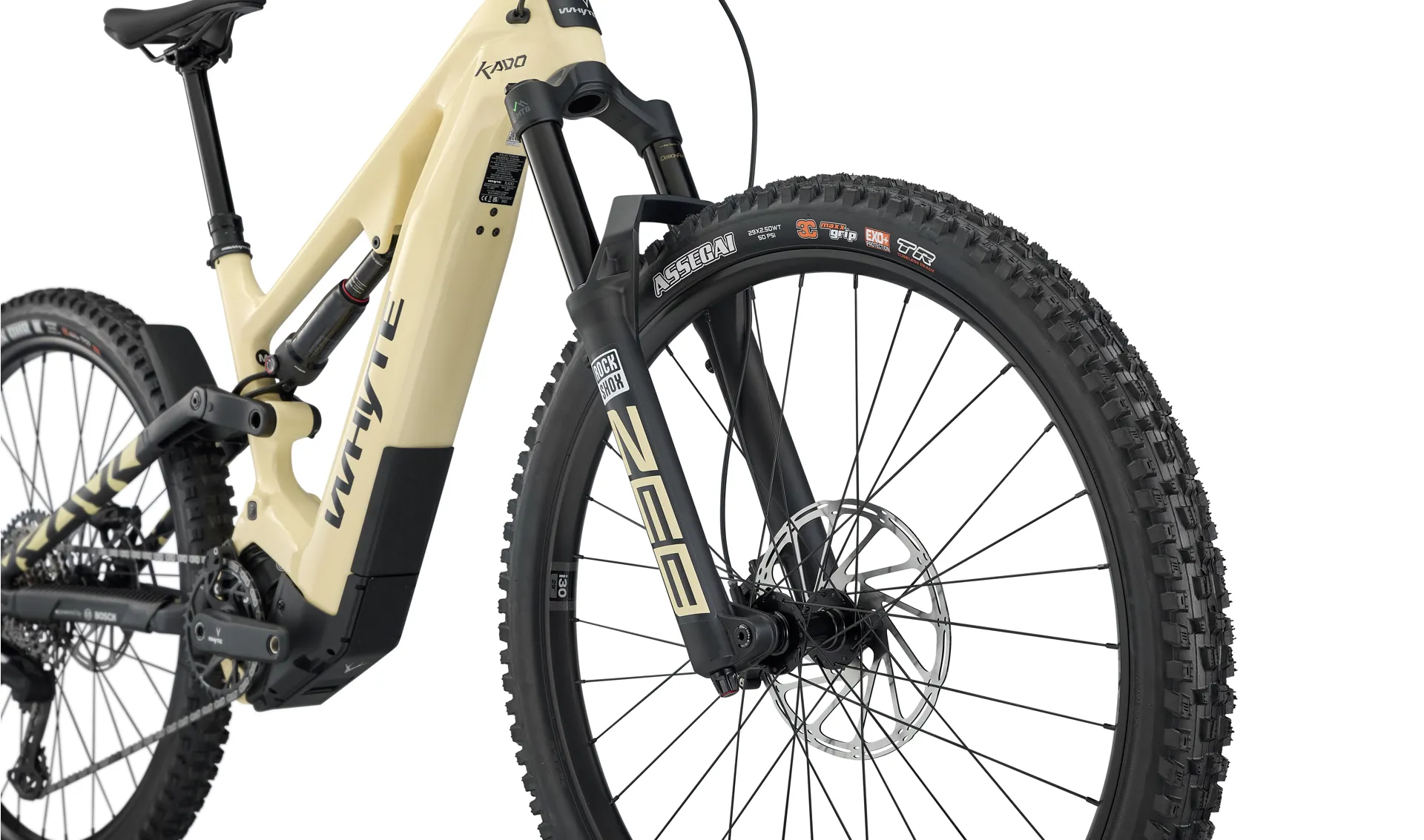

| Fork: | RockShox ZEB Select, 160mm travel, 44mm offset, DebonAir, Charger RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth |

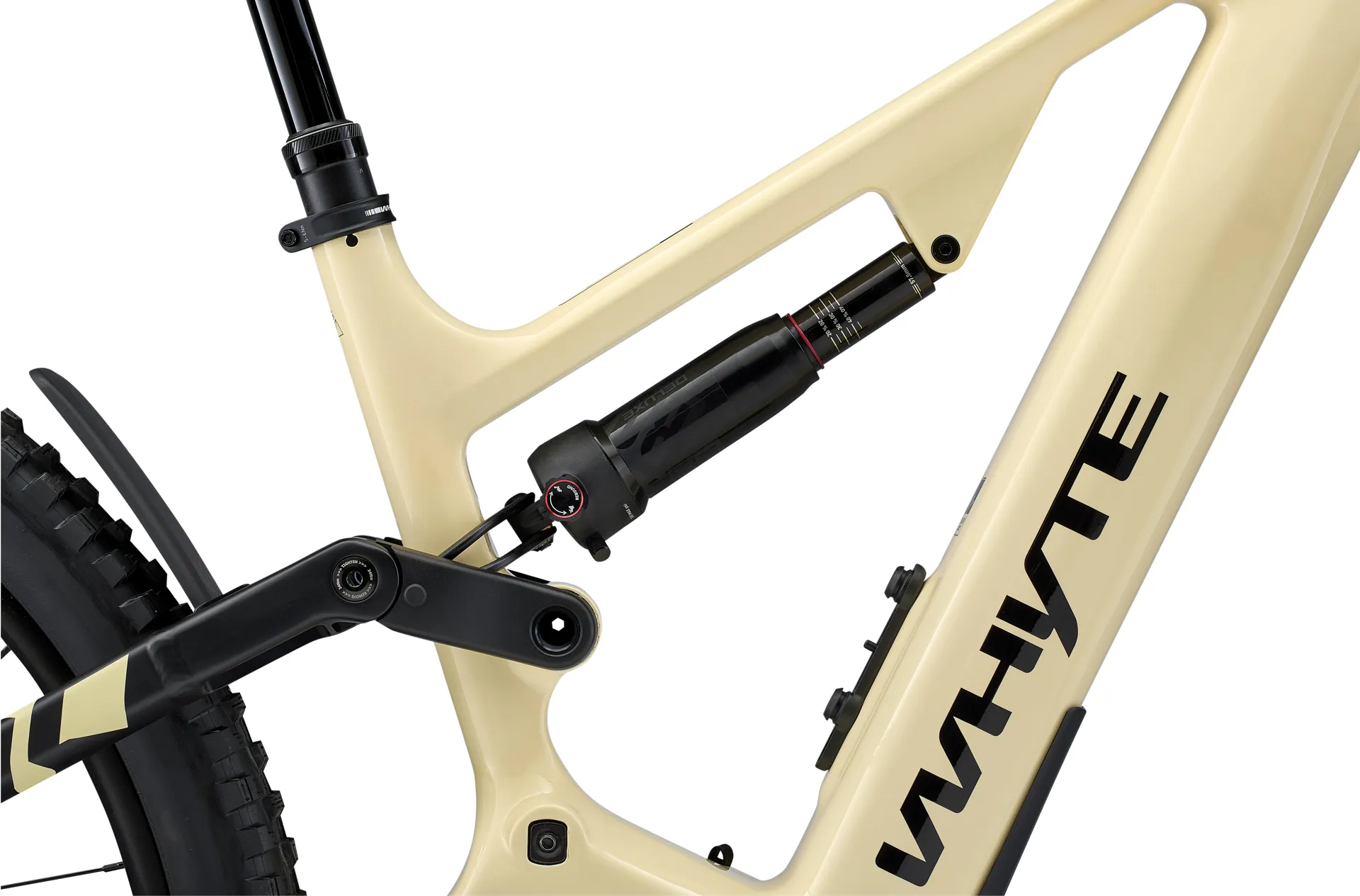

| Rear shock: | RockShox Deluxe Select R, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte |
| Headset: | Token TK19506 1/8in upper and 1.5in lower with sealed bearings |
| Rear hub: | Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole |
| Front hub: | Alloy, double sealed cartridge bearings, 12mm x 100mm thru-axle, 32 hole |
| Spokes: | 14g Stainless Black, brass nipples |
| Rims: | WTB ST Tough Front Rim, WTB HTZ Trail Rear Rim, 30mm internal |
| Tyre: | Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 29in x 2.4in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear |
| Shift levers: | SRAM Eagle 70, 12 speed |
| Front mech: | N/A |

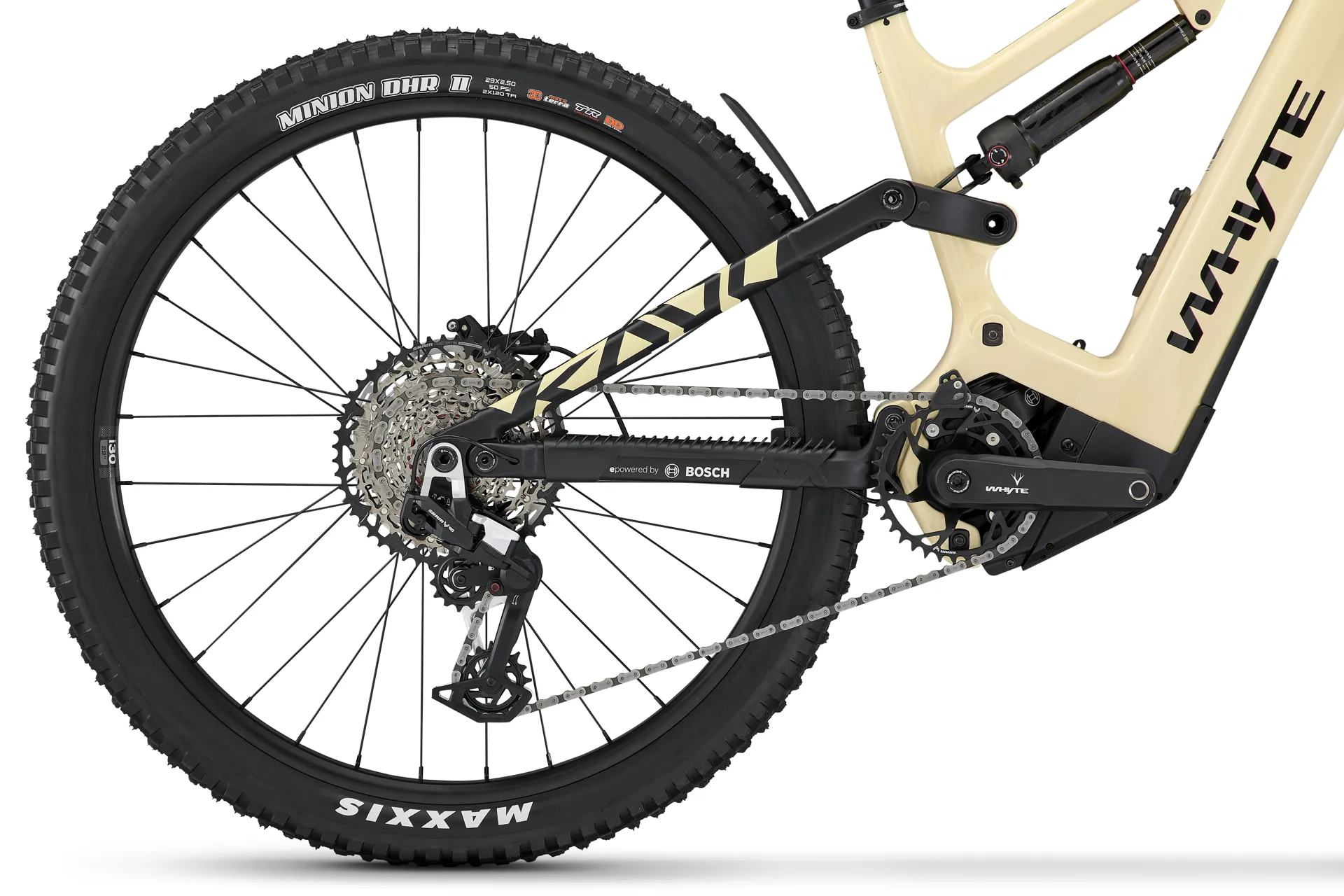

| Rear mech: | SRAM Eagle 90 T-Type mechanical, 12 speed |
| Cassette: | SRAM XS 1270, T-Type, 10-52T, 12 speed |
| Chain: | SRAM Eagle 70 |
| Crankset: | Whyte 155mm ISIS arms, SRAM Direct mount 36T chainring, T-Type |
| Bottom bracket: | N/A |

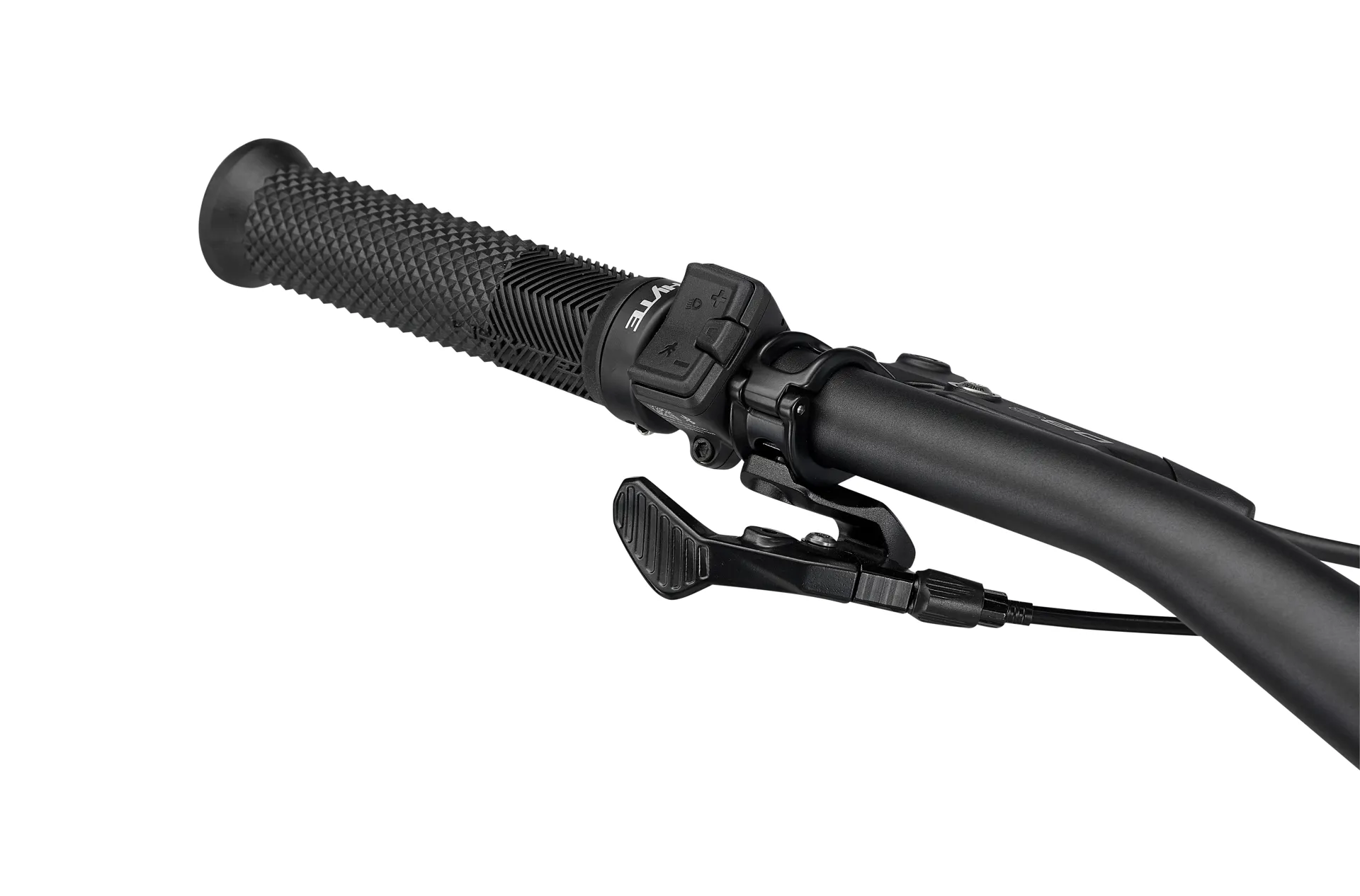

| Seatpost: | TranzX +RAD 34.9mm, Adjustable, (150 drop (S), 170mm drop (M), 200mm drop (L&XL)) |
| Saddle: | Whyte Custom |
| Handlebar: | Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide |
| Stem: | Whyte, 35mm Extension, 35mm Bar Bore |
| Grips: | Whyte Enduro lock-on |
| Brakes front: | SRAM DB8 Stealth, four piston with sintered metal pads, 220mm 6 bolt Centreline rotors |

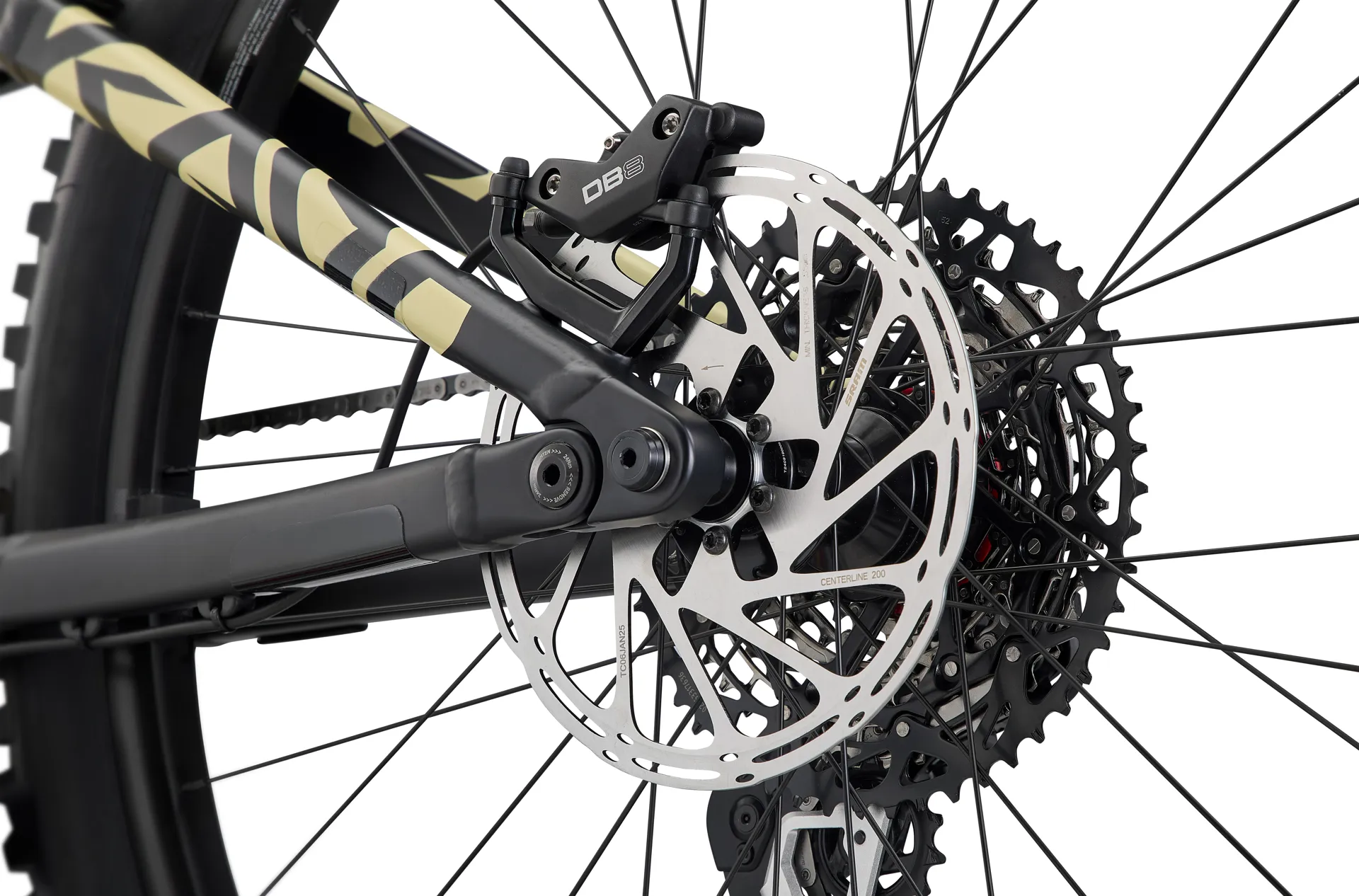

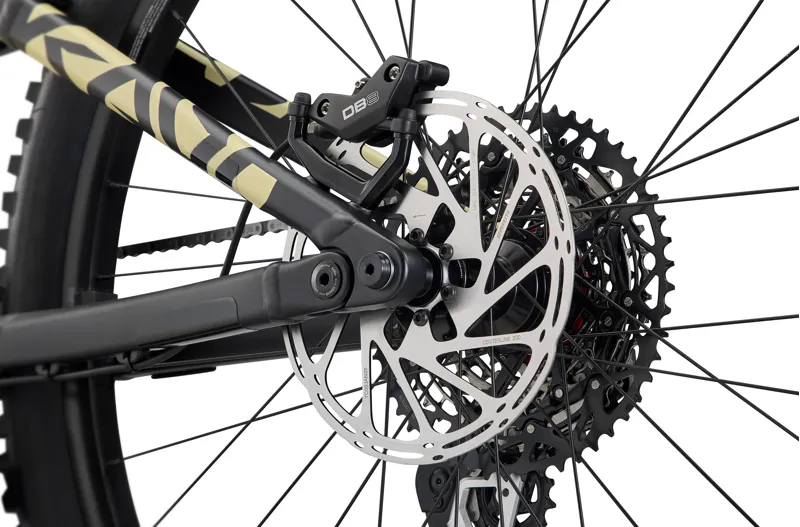

| Brakes rear: | SRAM DB8 Stealth, four piston with sintered metal pads, 200mm 6 bolt Centreline rotors |

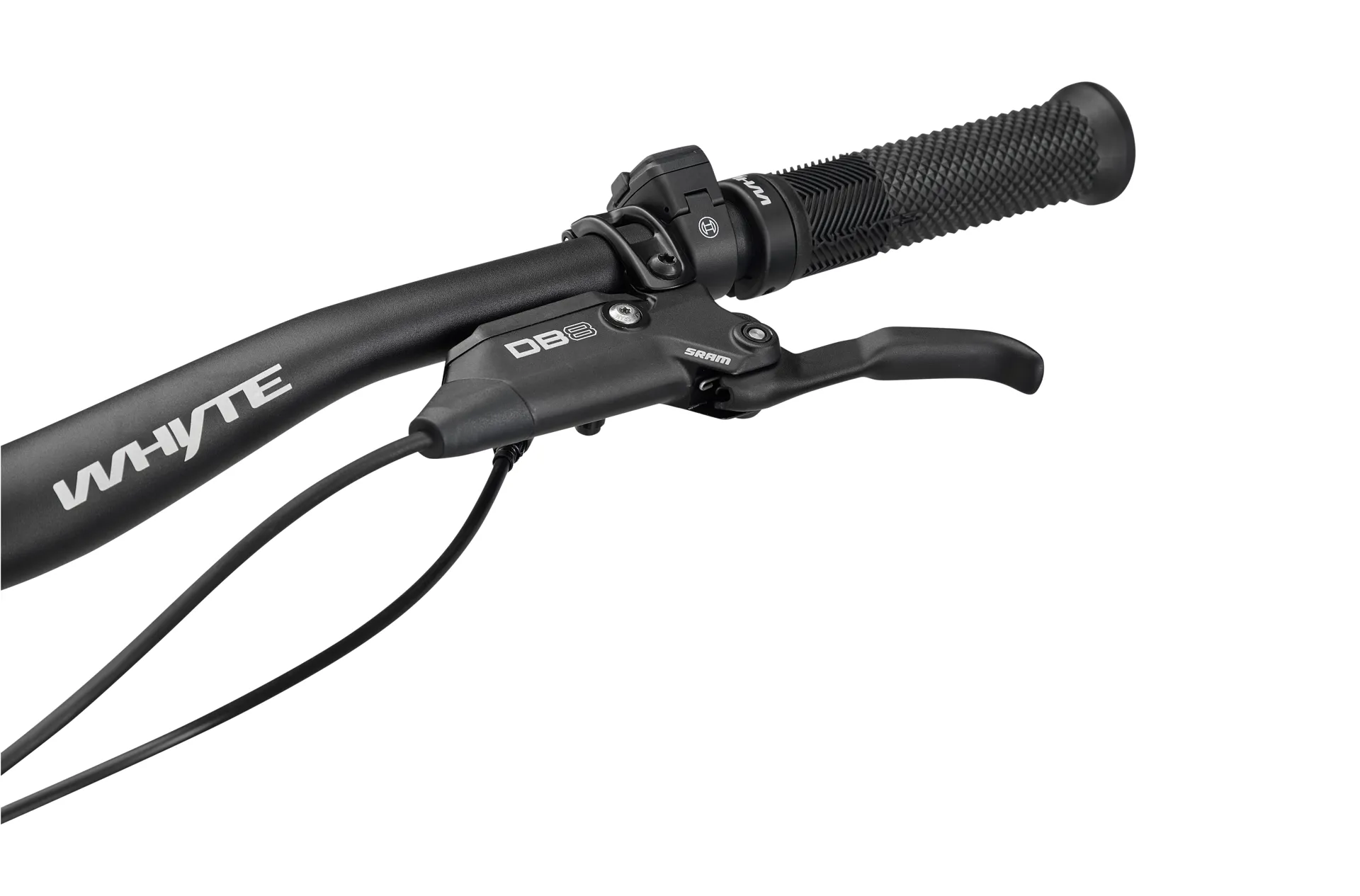

| Brake levers: | SRAM DB8 Stealth |
| Pedals: | Fibre reinforced composite platform |
| Weight: | 25.4Kg (size M, without pedals, with innertubes) |
