Whyte 506 V2 uses the same frame as their hardtail ebikes but is set up for urban leisure & commute. Can be converted to full off-road mode with a tyre swap.
Whyte 506 V2 uses the same frame as their hardtail ebikes but is set up for urban leisure & commute. Can be converted to full off-road mode with a tyre swap.
Whyte

Whyte 506 V2 Urban Electric Hardtail Mountain Bike

Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

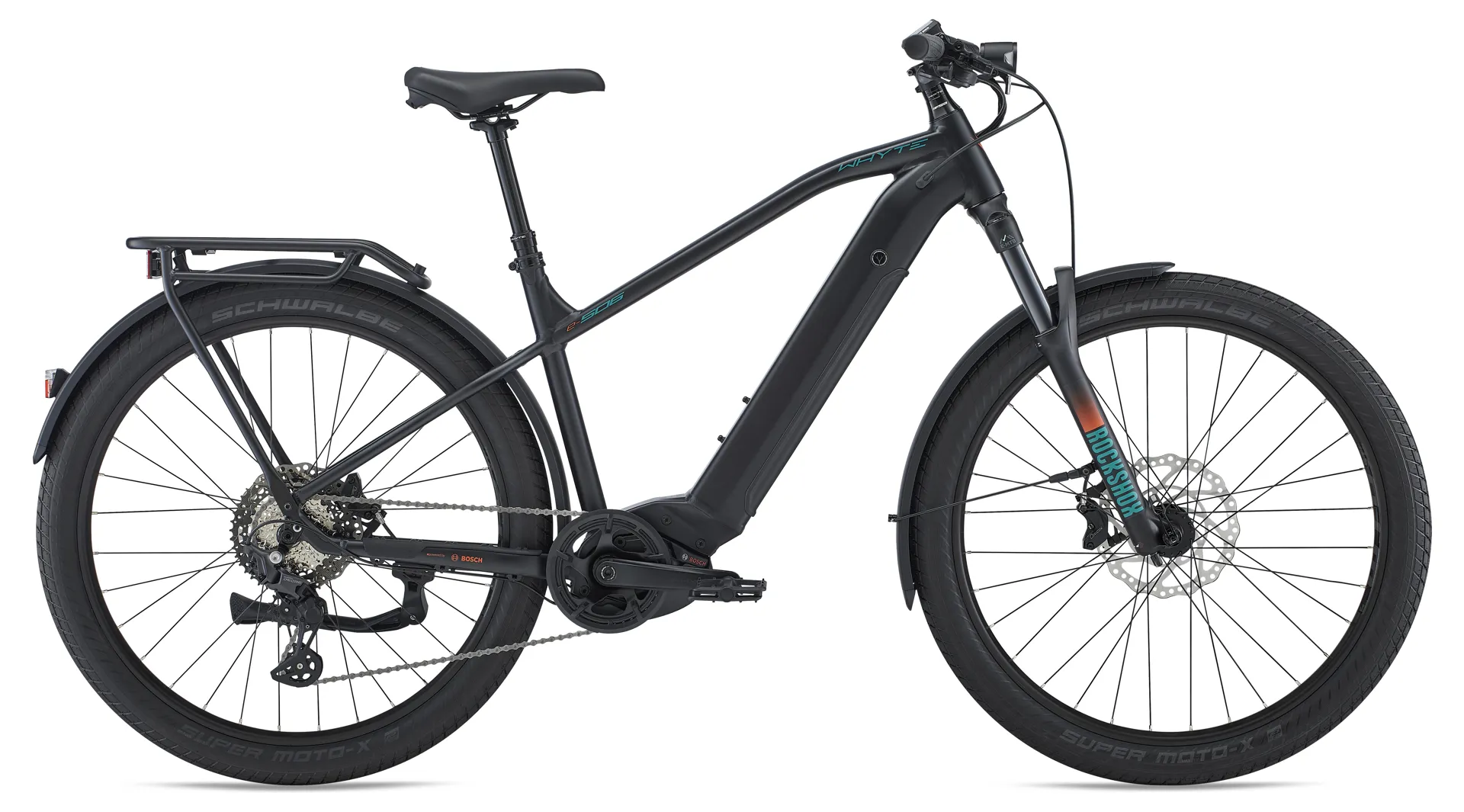

Whyte 506 V2 Urban Electric Hardtail Mountain Bike

Season:2023

Brand:Whyte

Code:23-WE506

The Whyte E-506 V2 Electric Bike has all the awesome attitude of our award-winning E-Hardtail MTBs but optimised for tearing up the town and country. Total Geometry handling and RockShox suspension will own the shortcut through the park or carve through traffic on the fat slick tyres.


The full power Bosch Performance CX motor will shrink hills and holeshot every traffic light start, and a dropper post means feet on the floor safety at every stop. Tough alloy rack, kickstand, full mudguards and built-in lights let you mix business and pleasure 24/7 and there’s enough battery for big days out on the weekend too.

This bike is a great choice if:

  • You want a tough e-mtb for fitness, commute or off-road.
  • Added safety and comfort from a larger tyre and ability to turn the bike back into a full off-road machine by simply swapping to knobby tyres.
  • You want a fully equipped e-bike with lights, a pannier and mudguards.
  • You want a high-powered 85Nm motor to give you the ability to choose the highest levels of support on the hills.
Technical Information
eBike Motor:Bosch Performance Line CX (25km/h) 85Nm
eBike Display:Bosch Purion Performance Line
eBike Battery:Bosch Power Tube PT500 Horizontal (500wh)
eBike Battery Charger:2A (100-240V)
Colour:Matt Black with Ocean & Burnt Orange
Frame:6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing for Dropper Post and 12mm X 148mm Boost Dropouts
Fork:RockShox 35 Silver R 27.5", 120mm Travel, 37mm Offset, Coil, Fast Black Coating, Adjustable Rebound, Tapered Steerer, 110mm x 15mm Boost, Maxle Lite
Rear shock:N/A
Headset:FSA No. 57B Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Caged Bearings
Rear hub:Alloy, e-bike specific, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole
Front hub:Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole
Spokes:DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples
Rims:WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole
Tyre:Schwalbe, Super Moto-X, 27.5" x 2.4, Greenguard Puncture Protection
Shift levers:Shimano M5130 Deore 10 Speed
Front mech:N/A
Rear mech:Shimano M5130 Deore, GS, 10 Speed
Cassette:Shimano CS-LG600, 10 Speed, 11-43
Chain:Shimano CN-LG500, 10 Speed
Crankset:Whyte, Steel narrow/wide, 160mm, Direct Mount 38T for Bosch Performance Line CX, Black
Bottom bracket:N/A
Seatpost:Whyte drop.it, 30.9, S 125mm, M/L/XL 150mm Travel, Paddle Remote Lever
Saddle:Whyte Custom, SUV Comfort sport, Single panel, with moulded rear handle
Handlebar:Whyte 6061 Alloy, 25mm Rise, 31.8mm, 720mm Wide
Stem:Whyte Alloy 6061, 60mm Extension
Grips:Whyte Custom Dual Density Lock-on
Brakes front:Tektro Orion, 4-Piston with Sintered Metal Pads, 203mm Disc, Post Mount
Brakes rear:Tektro Orion, 4-Piston with Sintered Metal Pads, 203mm Disc, Post Mount, Internal Routing
Brake levers:Tektro Orion
Pedals:None
Sizing Information
SMLXL
5’2″ – 5’6″5’6″ – 5’10”5’10” – 6’2″6’2″ – 6’5″
157 – 168 cm168 – 178 cm178 – 188 cm188 – 196 cm
