The Merida eSpresso City 500 is a high-end electric hybrid bike for leisure, commuting or as a workhorse with a massive 630wh battery and high torque motor.
The Merida eSpresso City 500 is a high-end electric hybrid bike for leisure, commuting or as a workhorse with a massive 630wh battery and high torque motor.
Merida

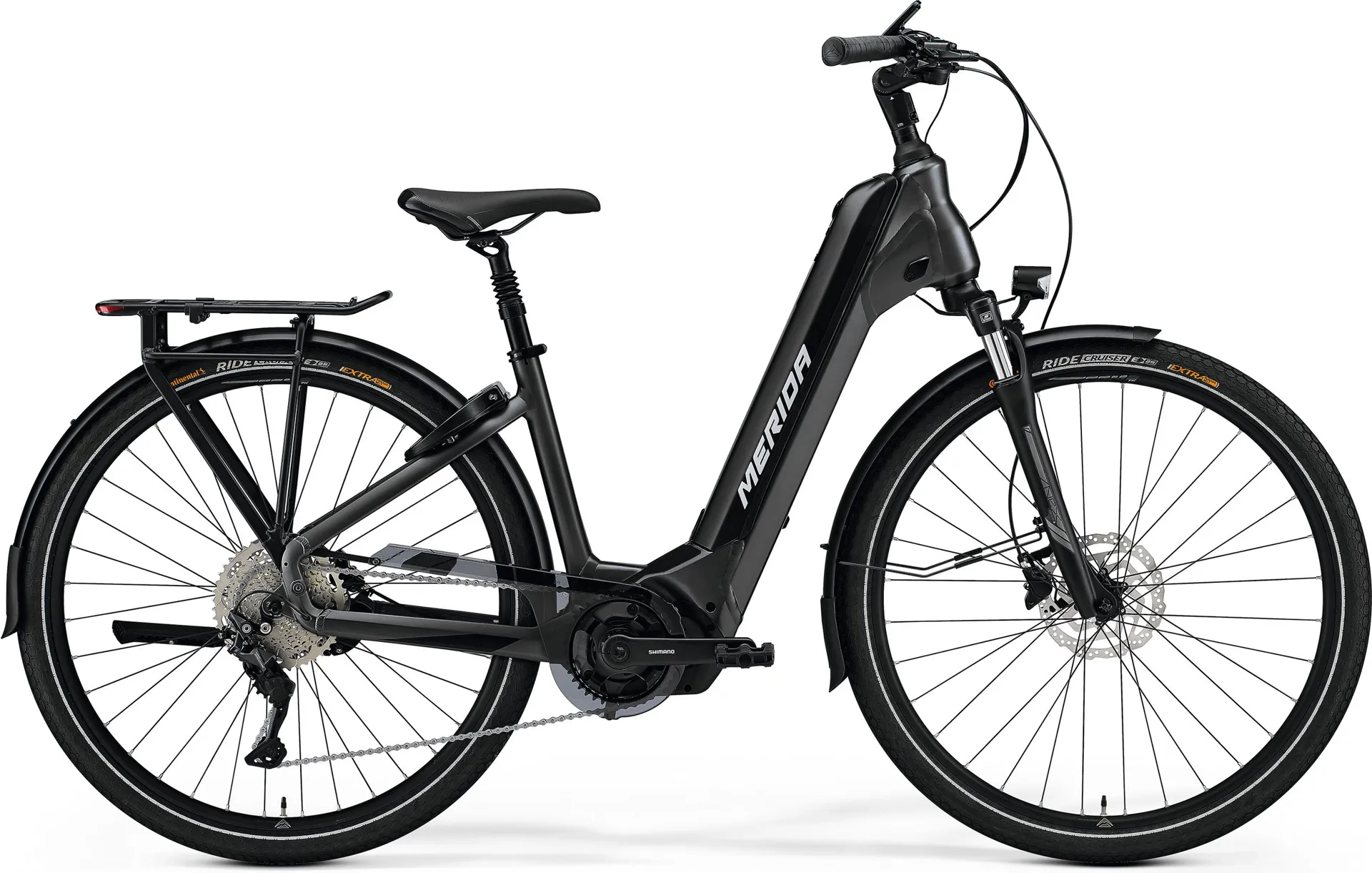

Merida eSpresso City 500 EQ 2021 Electric Hybrid Bike

Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Merida eSpresso City 500 EQ 2021 Electric Hybrid Bike

Season:2021

Brand:Merida

Code:21-M916

Stylish hybrid eBike with neatly integrated battery. Fully equipped with mudguards, rack, kickstand, lock and lights the eSpresso 500 EQ has 10 speed transmission and uses a Shimano Steps 6100 series 50NM motor with Shimano's new bigger 630W battery.

The eSpresso family are extremely versatile sitting on fast rolling 700c wheels, perfect for use in town, on gravel tracks or cycle paths.

The eSpresso City has one of the lowest step through heights of any bike in the market, and with a very low mounted battery, we keep the centre of gravity down to give it impeccable riding manners and as a result of the tapered head tube, confidence inspiring handling.

The latest generation eSpresso sees the integration of the battery into the down tube giving a very similar look to a regular bike. The use of Shimano motors and the integrated battery means it also rides like a regular bike.
Technical Information
Frame:Hydroformed Prolite 66 triple butted aluminium. A tapered head tube, bolt through axle and cast motor bracket deliver stiffness for confidence inspiring riding. Cables routed internally via Smart Entry ports to hold them neatly and silent.
Rear Shock:N/a
Fork:Suntour NEX E25; Coil; 63mm travel
Headset:Merida-8252 (for the steerer 1-1/8"), No. 6: 30D
Stem:Merida Expert TK; aluminium; 31.8mm diameter; adjustable - Length : 65 mm-XS/S/M, 90 mm-L/XL
Handlebar:Merida Expert TK; aluminium; 640mm wide; 35mm rise
Grips:Merida Expert TK
Brake Type:Hydraulic disc
Brake Lever:Shimano BR-MT200 (or Tektro HD-M275 if Shimano supply is delayed)
Front Brake:Shimano BR-MT200; 2 piston hydraulic disc brake (or Tektro HD-M275) with Shimano RT10; 180mm rotor
Rear Brake:Shimano BR-MT200; 2 piston hydraulic disc brake (or Tektro HD-M275) with Shimano RTEM300; 180mm rotor
Front Tyre:Continental Ride Cruiser; 622-50; wire bead; reflective stripe
Rear Tyre:Continental Ride Cruiser; 622-50; wire bead; reflective stripe
Wheel Size:700c
Rims:Merida Comp TK; 20mm inner rim width; Material: aluminium
Spokes:Black stainless
Front Hub:Shimano TX505; 100x9mm; 32 spokes; Centerlock
Rear Hub:Shimano TX505; 135x9mm; 36 spokes; Centerlock
Speeds:10
Front Derailleur:N/a
Rear Derailleur:Shimano Deore M5120
Shift Levers:Shimano Deore M4100
Chain:KMC e 10 Speed
Cassette:KMC e 10 Speed
Chainset:Shimano CRE61; 38 teeth chainwheel with Shimano FC-E6100; 170 mm length crank with chainguard
Bottom Bracket:Part of Shimano Steps motor
Pedals:VP Components, VPE-891
Saddle:Merida Expert TK; V-mount
Seat Post:Merida Expert TK; 30.9mm diameter; 15mm lay back; 40mm suspension travel
Motor:Shimano E6100; 60Nm motor with Shimano E8036; 630Wh battery
Battery Capacity:630 Wh
eBike Display:Shimano SC-E5000
