The Zenith Carbon frameset is the perfect starting point for your dream XC/trail build. A bike that blurs boundaries and allows for epic off road adventures.
The Zenith Carbon frameset is the perfect starting point for your dream XC/trail build. A bike that blurs boundaries and allows for epic off road adventures.
Saracen

2019 Saracen Zenith Carbon Frameset

£815.00 £999.99 18% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

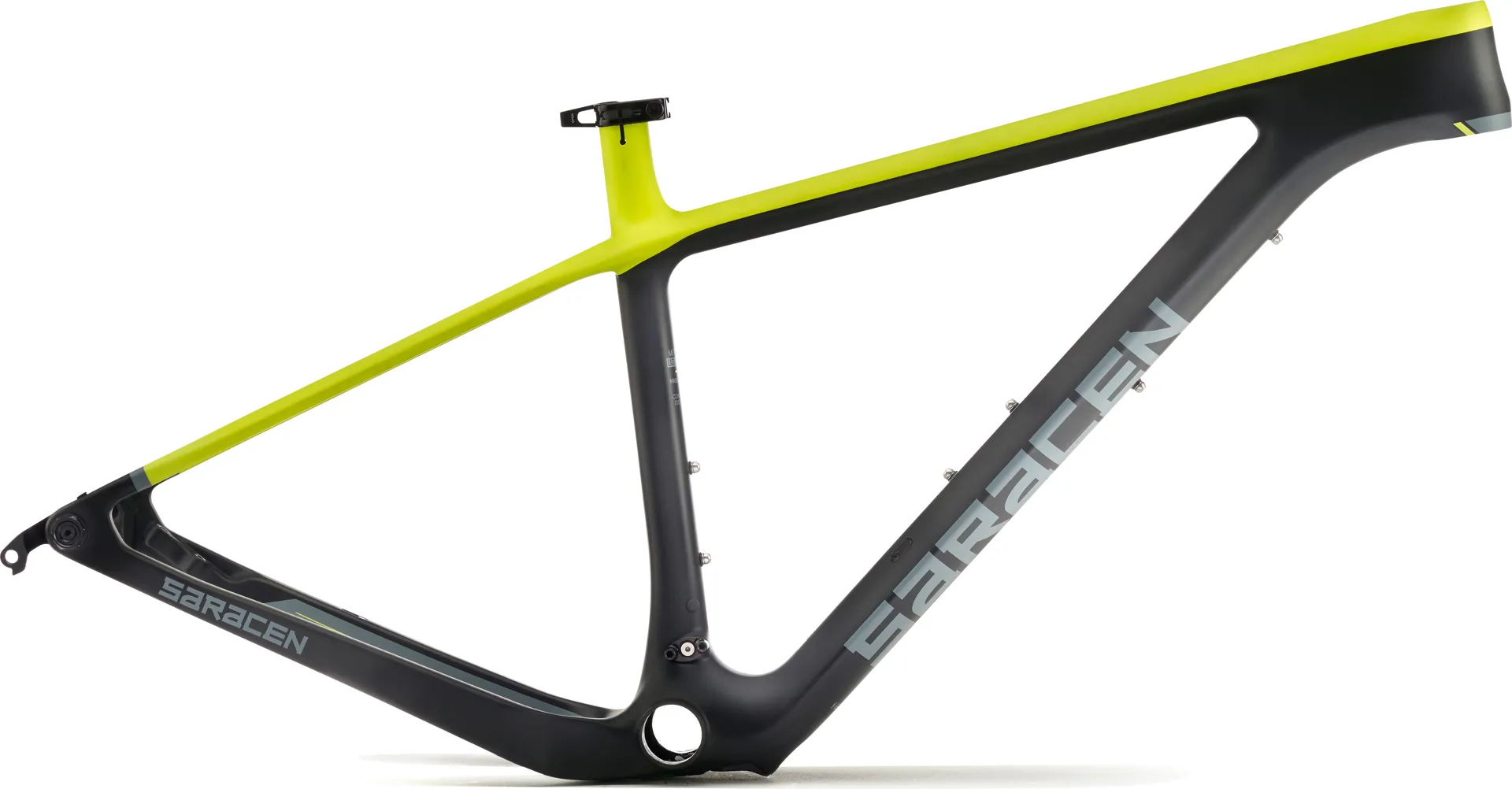

2019 Saracen Zenith Carbon Frameset

Season:2019

Brand:Saracen

Code:RN2621

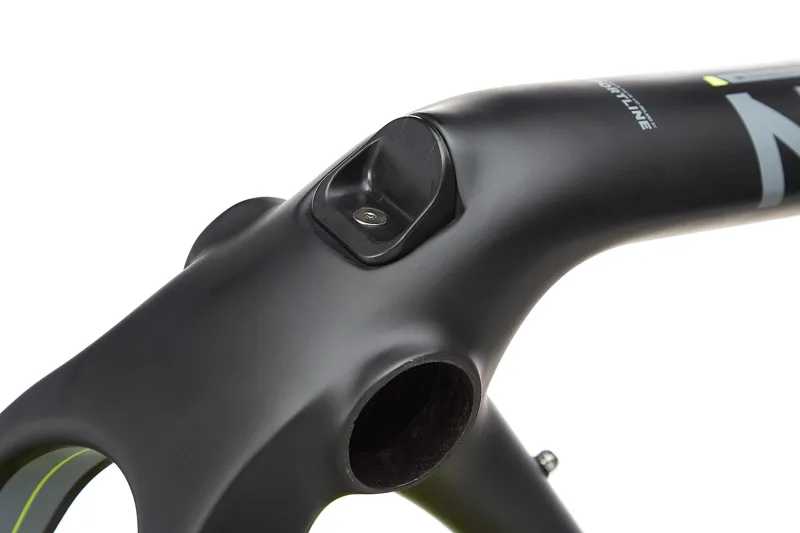

The Zenith carbon chassis is a ground up new design for 2018. Designed around 29" wheels and 100-120mm travel forks it's perfectly suited to smashing out off-road miles all day long. It features a 12 x 148mm Boost dropout system, IS42-IS52 tapered headtube and all cables are internally routed to keep it looking clean with routing for stealth dropper posts as standard. Its Shimano Di2 ready too with a neat battery port hidden in the downtube. It's a bike that blurs the boundary between XC race machine and aggressive trail bike.

Technical Information

FRAME

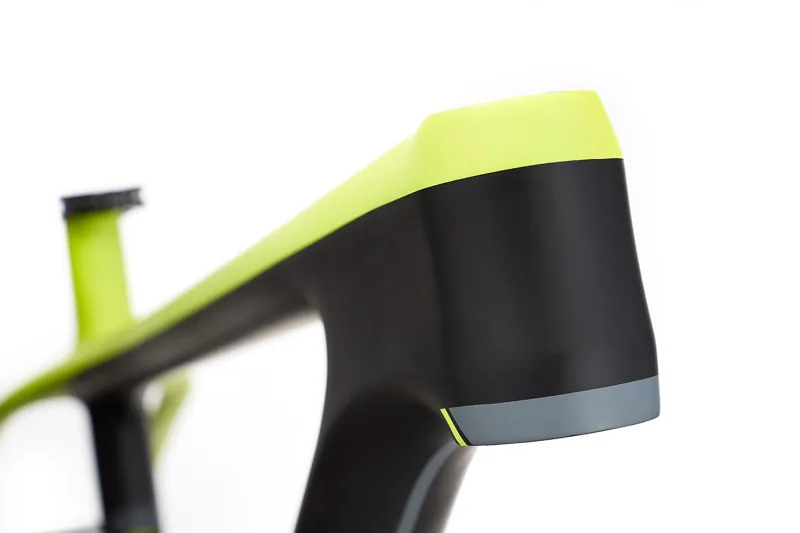

  • 24/30T Mitsubishi UD carbon / IS42-IS52 tapered headtube / 12 x 148mm Boost dropout system / dropper post ready / internal cable routing / UK developed / 29 specific

SUSPENSION

  • Fork / Recommended Travel - 100-120mm

COCKPIT

  • Headset / Prestine PT-1860D-616
  • Grips / Saracen lock-on dual-density grip



Sizing Information

Zenith Carbon X Frameset Sizing Guide

GEOMETRY

rn2621 Geometry Drawing
FRAME SIZES S M L XL
1. SEAT TUBE LENGTH (MM) 385 435 485 535
2. HORIZONTAL TOPTUBE LENGTH (MM) 586 611 639 670
3. REACH (MM) 387 413 438 463
4. STACK (MM) 605 606 615 634
5. HEADTUBE LENGTH (MM) 90 90 100 120
6. HEAD ANGLE 68° 68° 68° 68°
7. SEAT ANGLE 72° 72° 72° 72°
8. CHAINSTAY LENGTH (MM) 435 435 435 435
9. BB DROP (MM) 49.5 49.5 49.5 49.5
10. WHEELBASE LENGTH (MM) 1,102 1,127 1,155 1,188
